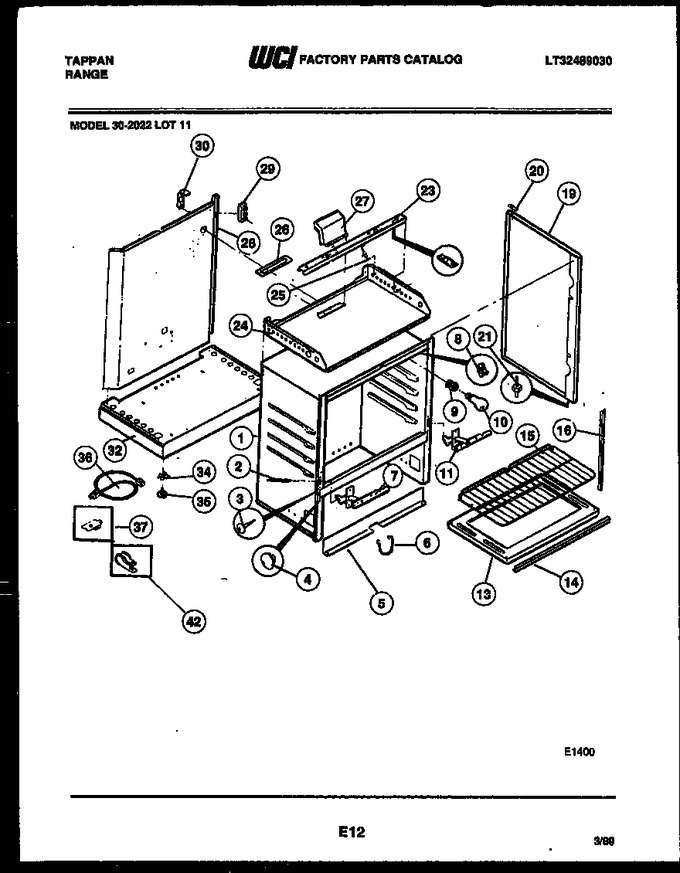

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 675T041P01 | Spring-oven Dr Cam |
|
- | |||||
| 3 | 636T066P06 | Scr-shldr (8a X 3/8``) |
|
- | |||||
| 4 | 557021P31 | Plug Button |
|
- | |||||
| 5 | 655T308F02 | Shield-wool (lwr Fr) |
|
- | |||||
| 6 | 612T094P01 | Retainer, Oven Burner |
|
- | |||||
| 7 | 117T013S18 | Cam-oven Dr (lh) |
|
- | |||||
| 8 | 145T025P01 | Clip-thermo Bulb |
|
$ 1.76 | |||||
| 9 | 662T012P02 | Socket-oven Lt Bulb |
|
- | |||||
| 10 | 374T018P05 | Bulb-oven Light |
|
- | |||||
| 11 | 117T013S14 | Cam - Oven Dr (rh) |
|
- | |||||
| 12 | 008T479F01 | Angle, Rear Oven |
|
- | |||||
| 13 | 058T035F01-86 | Bottom, Oven |
|
- | |||||
| 14 | 647T068P02 | Seal Door |
|
- | |||||
| 15 | 591T073P02 | Rack, Oven |
|
- | |||||
| 16 | 115T647P03 | Seal-door (side) |
|
- | |||||
| 19 | 515T032F08-45 | Pnl-bodyside (l & R) Coffee |
|
- | |||||
| 20 | 280T028P02 | Glide-main Top |
|
- | |||||
| 21 | 636T071P01 | Scr- Body Pnl Guide |
|
- | |||||
| 23 | 136T310F04-18 | Chan-top Burner Sprt |
|
- | |||||
| 24 | 095T029W16-86 | Burner Box |
|
- | |||||
| 25 | 302T019P01 | Hinge-main Top |
|
- | |||||
| 26 | 3131536 | Shield-wool - Vent |
|
- | |||||
| 27 | 250T020W02-18 | Flue Box |
|
- | |||||
| 28 | 021T046F03-18 | Back - Main |
|
- | |||||
| 29 | 709T033P02 | Terminal Block |
|
- | |||||
| 30 | 072T612F02 | Bracket |
|
- | |||||
| 32 | 036T050W02-18 | Base, Main |
|
- | |||||
| 34 | 241T017P10 | Fastener-leveling Leg |
|
- | |||||
| 35 | 636M004P01 | Screw, Leveling |
|
- | |||||
| 36 | 171T021P03 | Cord-mg Pwr Sply |
|
- | |||||
| 37 | 241T017P67 | Fstnr-8a 6 Type |
|
- | |||||
| 42 | 241T017P128 | Fstnr-clp (pwr Cord) |
|
- | |||||
| *20837 | 328T015P47 | Insulation Wool - (2 1/2 X 19 X 62`` Top & Sides) |
|
- | |||||
| *20837 | 328T015P37 | Insulation Wool - (2 X 23 X 28`` Block) |
|
- | |||||
| *20837 | 328T015P15 | Insulation Wool - (1 1/2 X 2 1/2 X 24`` Channel) |
|
- | |||||
| 11A | 355T58801 | Kit-door Adjustment (non-illustrated) |
|
- | |||||
| 11B | 3131574 | Screw - Cam Mtg (non-illustrated) |
|
- | |||||
| 13A | 636T134P01 | Screw - Oven Bottom (non-illustrated) |
|
- | |||||
| 25A | 3131574 | Scr-mn Top Hinge Mtg |
|
- | |||||
| 27A | 3131574 | Screw-flue Box Mtg (non-illustrated) |
|
- |
