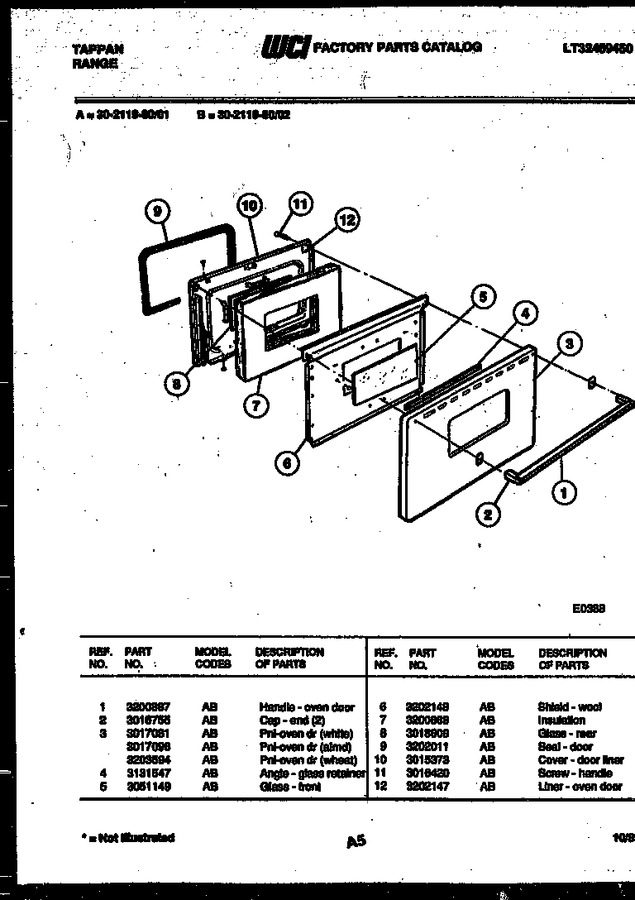

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200887 | Handle-oven Door |
|
- | |||||
| 2 | 3016755 | Cap, End (2) |
|
- | |||||
| 3 | 3017081 | Pnl - Oven Dr - White |
|
- | |||||
| 3 | 3017096 | Pnl - Oven Dr (almd) |
|
- | |||||
| 3 | 3203594 | Pnl-oven Dr (wheat) |
|
- | |||||
| 4 | 3131547 | Angle - Glass Retainer |
|
- | |||||
| 5 | 3051149 | Glass - Front |
|
- | |||||
| 6 | 3202148 | Shield-wool |
|
- | |||||
| 7 | 3200668 | Insulation |
|
- | |||||
| 8 | 3018609 | Glass - Rear |
|
- | |||||
| 9 | 3202011 | Seal-door |
|
- | |||||
| 10 | 3015373 | Cover-door Liner |
|
- | |||||
| 11 | 3016420 | Screw, Handle |
|
- | |||||
| 12 | 3202147 | Liner-oven Door |
|
- |
