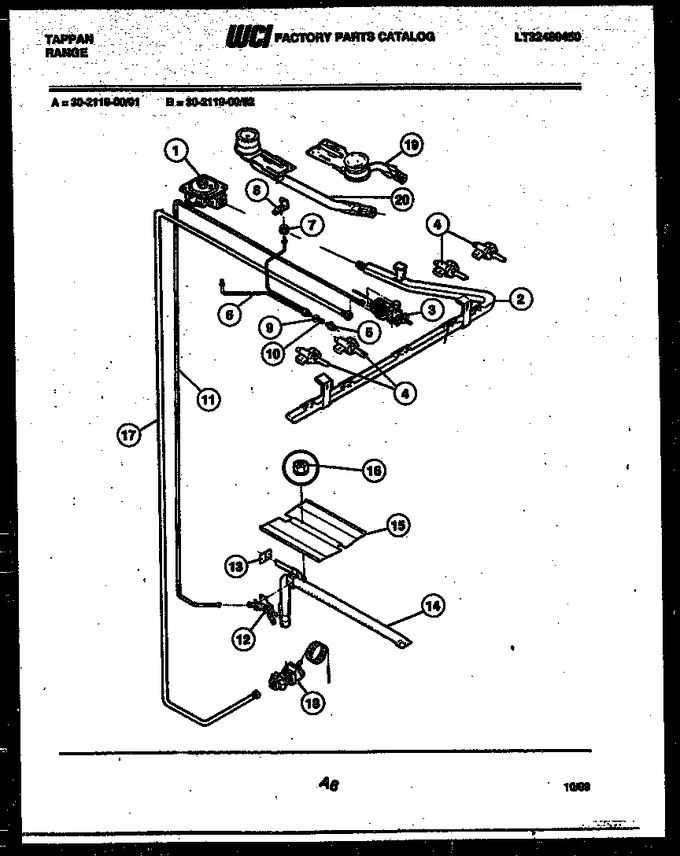

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016997		Control Regul.		Appelez-nous	-
2	3204972		Manifold - Pipe		Appelez-nous	-
2	3202794		Manifold-pipe		Appelez-nous	-
3	3202795		Thermostat		Appelez-nous	-
3	3204974		Thermostat		Appelez-nous	-
4	3202796		Valve - Top (2 Pos)		Appelez-nous	-
5	3201274		Filter		Appelez-nous	-
6	3201273		Tube-top Pilot Dual		Appelez-nous	-
7	3201275		Cap-top-pilot (2)		Appelez-nous	-
8	3202798		Shield-pilot (2)				$ 55.18
9	3201276		Nut - 3/16 Compression		Appelez-nous	-
10	3201277		Ferrule		Appelez-nous	-
11	3203398		Tube - Alum		Appelez-nous	-
12	3203395		Pilot - Oven		Appelez-nous	-
13	3018603		Brkt - Oven Brnr Supt		Appelez-nous	-
14	3203391		Burner - Oven		Appelez-nous	-
15	3203265		Baffle,oven Burner		Appelez-nous	-
16	3013272		Nut - Baffle		Appelez-nous	-
17	3202800		Tube - Alum		Appelez-nous	-
18	3204583		Valve - Safety		Appelez-nous	-
19	3204958		Burner-top/front		Appelez-nous	-
19	3203392		Burner-top Front		Appelez-nous	-
20	3203393		Burner-top Rear		Appelez-nous	-
20	3204960		Burner-top-rear		Appelez-nous	-
4A	3204499		Screw-valve Mtg (10) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
