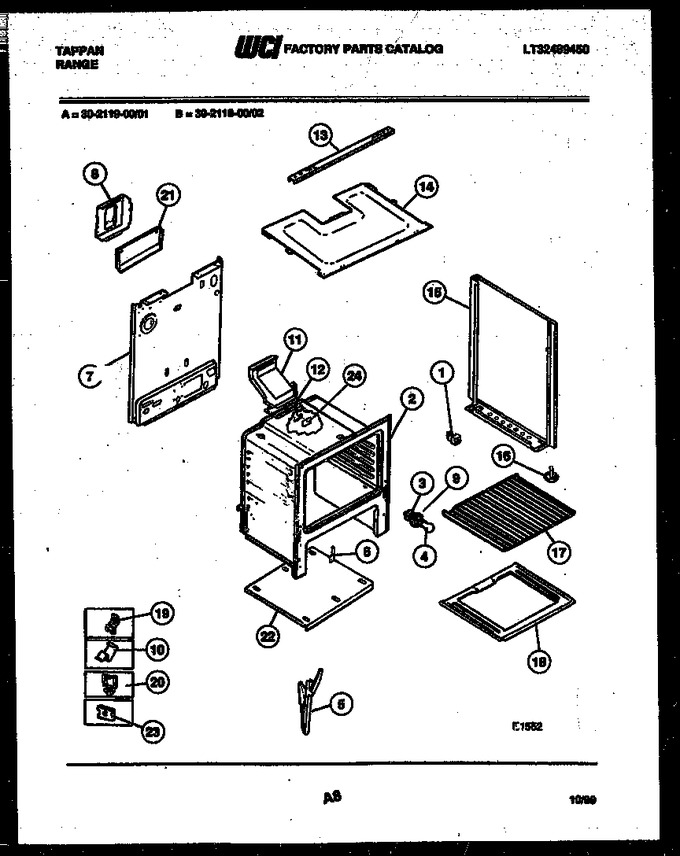

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer, B/s (8) |
|
$ 3.62 | |||||
| 3 | 3014073 | Socket-oven Light |
|
- | |||||
| 4 | 3013071 | Light Bulb |
|
- | |||||
| 5 | 3131569 | Channel Dr Hng (2) |
|
- | |||||
| 6 | 3131570 | Cover Hng. Cutout (2) |
|
$ 7.35 | |||||
| 7 | 3203082 | Back-main |
|
- | |||||
| 8 | 3131660 | Shield, Rear Wall |
|
- | |||||
| 9 | 3051511 | Housing-oven Light |
|
$ 60.22 | |||||
| 10 | 3011813 | Clip-wire (1) |
|
$ 14.79 | |||||
| 11 | 3131904 | Flue |
|
- | |||||
| 12 | 3131355 | Gasket-flue (1) |
|
- | |||||
| 13 | 3203394 | Channel-burner Box |
|
- | |||||
| 14 | 3202791 | Burner - Box |
|
- | |||||
| 14 | 3204962 | Burner Box |
|
- | |||||
| 15 | 3200791 | B/s Pnl-wheat Rh |
|
- | |||||
| 15 | 3200790 | B/s Pnl-almd Rh |
|
- | |||||
| 15 | 3200789 | B/s Pnl-white Rh |
|
- | |||||
| 16 | 3203397 | Screw-leveling (4) |
|
- | |||||
| 17 | 3131973 | Rack, Oven (2) |
|
- | |||||
| 18 | 3011519 | Bottom-oven |
|
- | |||||
| 19 | 3011805 | Clip-thermo |
|
- | |||||
| 20 | 241T047P02 | Fstnr, Wire |
|
- | |||||
| 21 | 3131348 | Shield-flue |
|
- | |||||
| 22 | 3131180 | Base, Broil |
|
- | |||||
| 23 | 3012323 | Fstnr. Hinge |
|
- | |||||
| 24 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| *32089 | 3202799 | Shield, Flue |
|
- | |||||
| *32089 | 3203455 | Chield - Top |
|
- | |||||
| 15A | 3200793 | B/s Pnl-almd Lh |
|
- | |||||
| 15A | 3200794 | B/s Pnl-wheat Lh |
|
- | |||||
| 15A | 3200792 | B/s Pnl-white Lh |
|
- | |||||
| 18A | 3017142 | Insul - Oven Wrap (non-illustrated) |
|
$ 193.50 | |||||
| 18B | 3203541 | Insul - Oven Back (non-illustrated) |
|
- | |||||
| 19A | 3012327 | Fstnr-power Cord (non-illustrated) |
|
- | |||||
| 21A | 3131903 | Bumper |
|
$ 55.36 | |||||
| 21B | 3014226 | Supt - Oven Bttm (2) (non-illustrated) |
|
- | |||||
| 22A | 3934056 | Anti, Tip Bracket (non-illustrated) |
|
- | |||||
| 22B | 3131244 | Cover-power Cord, (non-illustrated) |
|
- | |||||
| 23A | 3015372 | Cover-front Main (non-illustrated) |
|
- | |||||
| 23B | 316282700 | Screw - Oven Bottom (non-illustrated) (Replaces: 3131732) |
|
$ 9.93 | |||||
| 6A | 5304534377 | Cord, Power (non-illustrated) (Replaces: 3202006) |
|
$ 26.85 |
