SELECT A DIAGRAM

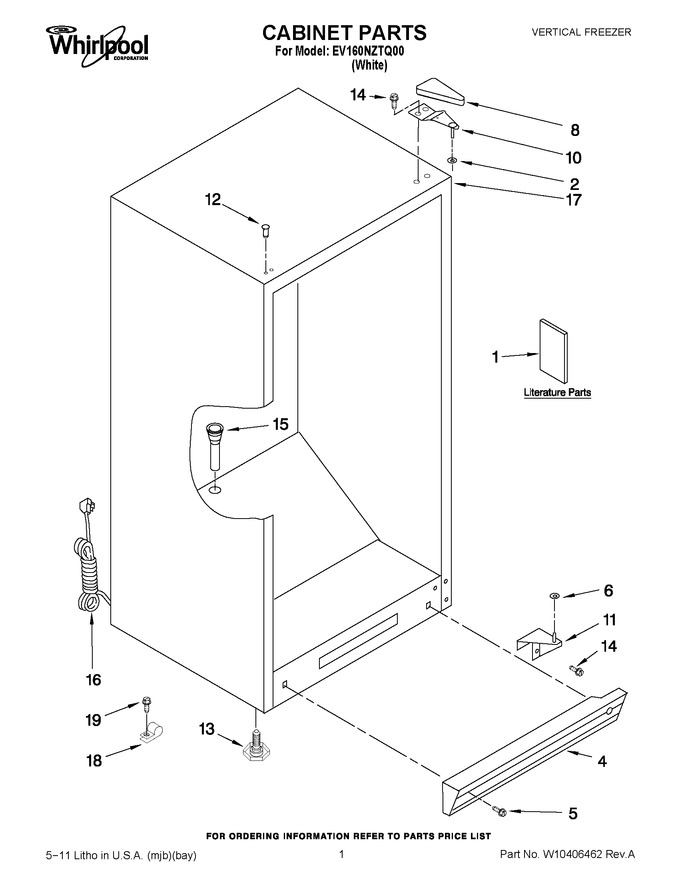

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326805		Energy Label/tag		Appelez-nous	-
1	W10326799		Owners Manual		Appelez-nous	-
2	W10296820		Washer, Door Spacer, Upper		Appelez-nous	-
4	WP4-60461-005		Grille   (Replaces: 8210290)				$ 100.70
5	WP489478		Screw   (Replaces: 4357243)				$ 6.98
6	W10296818		Washer, Door Spacer Lower		Appelez-nous	-
8	4357279		Cover, Hinge				$ 46.56
10	2-81016-105		Hinge, Top				$ 37.06
11	4-82693-002		Hinge, Bottom				$ 72.12
12	WP2189000		Plug, Hole   (Replaces: 4390596)			Immediately	$ 6.66
13	WP3-82710-001		Leg, Leveler   (Replaces: W10205065)			Immediately	$ 18.29
14	W10204670		Screw		Appelez-nous	-
15	W10164544		Grommet, Drain		Appelez-nous	-
16	8210403		Cord, Power		Appelez-nous	-
17	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
18	488946		Clamp, Tube   (Replaces: 4356643)				$ 18.41
19	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
