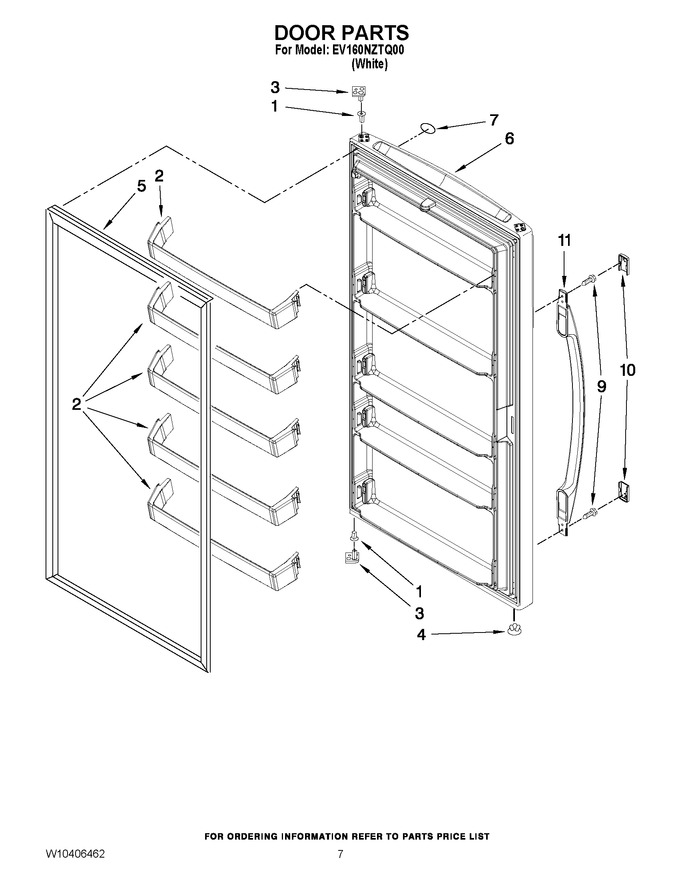

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 2 | W10737497 | Rail, Door (5) (Replaces: 8210385) |
|
$ 82.92 | |||||
| 3 | 8210400 | Stop, Door |
|
- | |||||
| 4 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 9.72 | |||||
| 5 | WP4-65151-001 | Gasket, Door (Replaces: 8210340) |
|
$ 303.88 | |||||
| 6 | 8210363 | Door Assembly (includes Interior Door Panel) |
|
$ 750.11 | |||||
| 7 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 79.87 | ||||
| 9 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.26 | |||||
| 10 | 4390668 | Trim, Handle |
|
- | |||||
| 11 | 4-81902-001 | Handle (includes Item 10) |
|
- |
