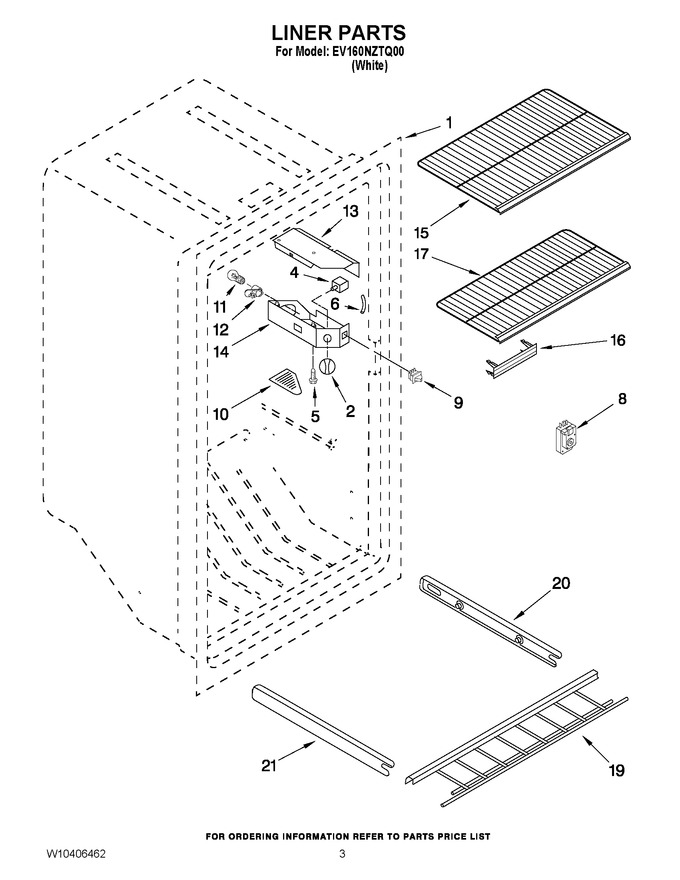

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 25.80
4	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 220.05
5	WPW10068250		Screw   (Replaces: 4357042)				$ 3.66
6	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 7.16
8	WP3-81329		Timer, Defrost   (Replaces: 4357124)			Immediately	$ 170.69
9	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 33.51
10	8210349		Lens, Light				$ 33.01
11	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 10.17
12	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 99.14
13	8210351		Shield, Light				$ 42.03
14	8210406		Box, Control		Appelez-nous	-
15	4-82315-001		Shelf, Upper Wire   (Replaces: 8210346)				$ 302.10
16	WP3-80414-103		Vent Plug (4)   (Replaces: 4357295)				$ 11.57
17	8210347		Shelf, Lower Wire		Appelez-nous	-
19	4357163		Gate		Appelez-nous	-
20	4357293		Support, Fence (r.h)				$ 48.96
21	4356890		Support, Fence, (l.h.)		Appelez-nous	-
