SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)

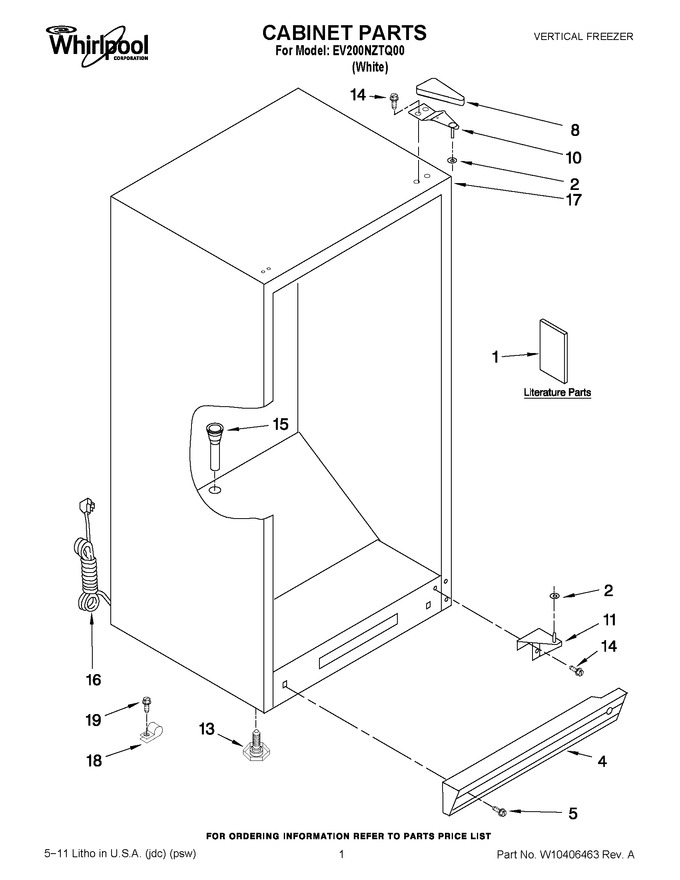

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326808		Energy Label/tag		Appelez-nous	-
1	W10326799		Owners Manual		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	4-60461-006		Grille				$ 43.55
5	WP489478		Screw   (Replaces: 4357243)				$ 6.98
8	4357279		Cover, Hinge				$ 46.56
10	2-81016-105		Hinge, Top				$ 37.06
11	4-82693-002		Hinge, Bottom				$ 72.12
13	WP3-82710-001		Leg, Leveler   (Replaces: W10205065)			Immediately	$ 18.29
14	WP8204624		Screw   (Replaces: 4356830)				$ 14.99
15	W10164544		Tube, Drain		Appelez-nous	-
16	4-82399-001		Cord, Power				$ 52.24
17	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
18	488946		Clamp, Tube   (Replaces: 4356589)				$ 18.41
19	WP489478		Screw   (Replaces: 4357243)				$ 6.98

    View Diagram in Separate Window       Print Part List
