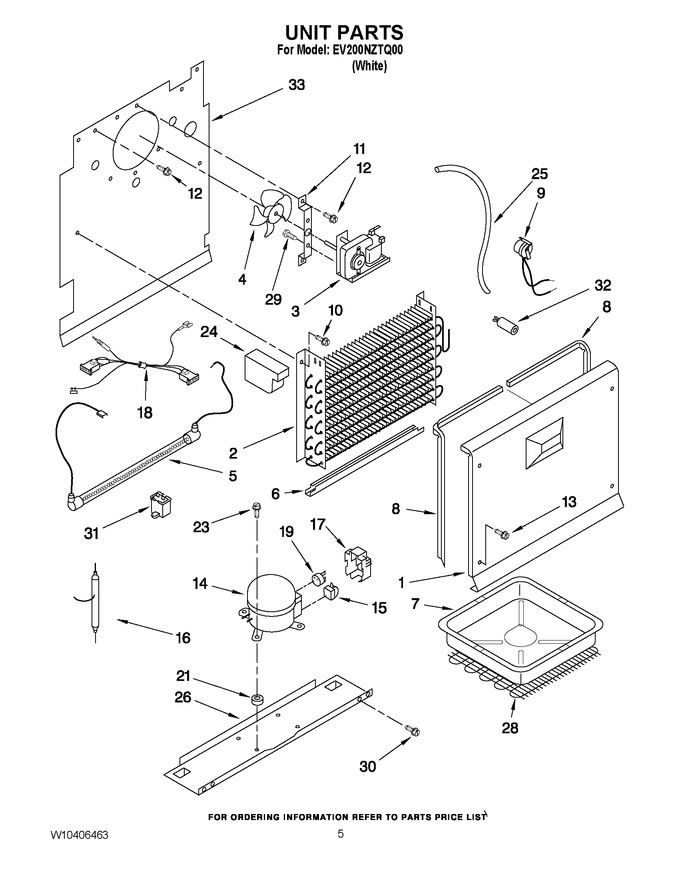

03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-82699-001		Cover, Evaporator				$ 83.56
2	WP4-81546		Evaporator   (Replaces: 4357244)				$ 385.21
3	WP3-60336-001		Motor, Fan   (Replaces: 3-60336-001)			Immediately	$ 291.24
4	WPW10445742		Blade-fan   (Replaces: 1-80250-102)			Immediately	$ 9.05
5	WP3-80405-003		Heater, Defrost   (Replaces: 3-80405-003)				$ 180.25
6	W10164624		Shield, Heater		Appelez-nous	-
7	W10164623		Pan, Drain		Appelez-nous	-
8	4390664		Gasket, Cover Evaporator				$ 80.20
9	WP1-81801-001		Bi-metal Defrost   (Replaces: 8210253)			Immediately	$ 111.32
10	WP3-24004-109		Screw   (Replaces: 4357110)				$ 7.25
11	2-80028-101		Bracket, Fan Mtr   (Replaces: 4356942)				$ 84.58
12	60001022		Screw, Motor   (Replaces: 4356943)				$ 56.93
13	WP3-24004-109		Screw (4)   (Replaces: 4357110)				$ 7.25
14	W10309994		Compressor   (Replaces: 4-32812-264)			Immediately	$ 551.61
15	4356738		Relay				$ 53.17
16	W10843121		Drier   (Replaces: 3-81459-002)			Immediately	$ 47.31
17	2217635		Cover   (Replaces: 4-34046-011)		Appelez-nous	-
18	4-81785-001		Harness, Fan   (Replaces: 8210426)		Appelez-nous	-
19	2-34286-021		Overload				$ 123.71
21	4356335		Compressor Grommet		Appelez-nous	-
23	8210220		Bolt, Compressor		Appelez-nous	-
24	1-80252-101		Block, Foam				$ 5.86
25	2-82072-003		Exchanger, Heat		Appelez-nous	-
26	W10260291		Pan, Compressor		Appelez-nous	-
28	W10451951		Condenser   (Replaces: 4-82234-002)				$ 257.77
29	WP3400094		Screw   (Replaces: 4356970)				$ 7.14
30	WP3-24838-048		Screw   (Replaces: 4357277)				$ 7.00
31	3-35956-013		Capacitor				$ 103.82
32	3-23995-015		Grommet		Appelez-nous	-
33	4-80504-101		Plate, Evaporator Mount				$ 109.02
NI	N/P		Refrigerant Charge (6.2 Oz. (r134a))		Appelez-nous	-
