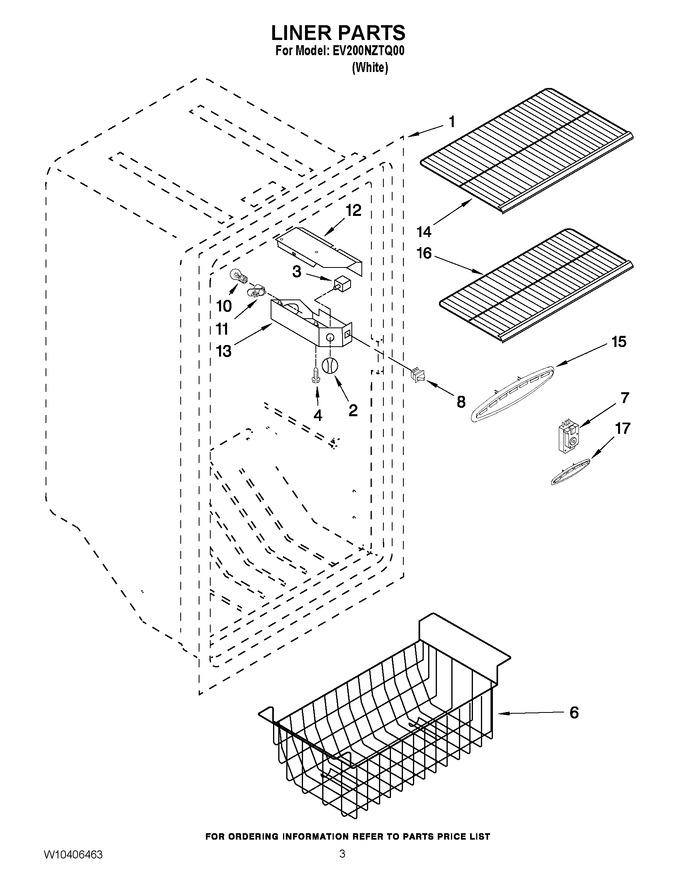

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 25.80
3	WP4-83053-002		Thermostat   (Replaces: 4-83053-002)				$ 220.05
4	W10709795		Screw   (Replaces: 4391961)				$ 11.82
6	4-60064-001		Basket, Wire		Appelez-nous	-
7	WP3-81329		Defrost Timer   (Replaces: 3-81329)			Immediately	$ 170.69
8	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 33.51
10	40A15		Bulb-light   (Replaces: 1-34291-002)			Immediately	$ 1.98
11	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 99.14
12	8210351		Shield, Light				$ 42.03
13	8210406		Box, Control		Appelez-nous	-
14	WP4-82634-001		Shelf, Upper Wire   (Replaces: 4-82634-001)				$ 133.33
15	4-82556-002		Air Diffuser, Upr		Appelez-nous	-
16	WP4-82977-001		Shelf, Lower Wire   (Replaces: W10258752)				$ 130.93
17	4-82573-002		Air Diffuser Lwr   (Replaces: W10258754)		Appelez-nous	-
