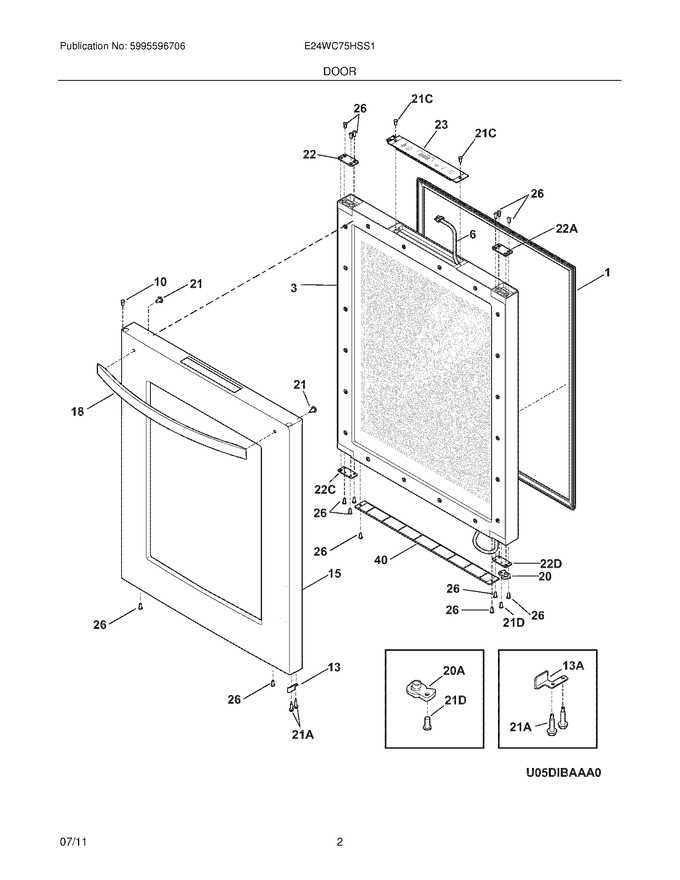

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242038601		Gasket-door,black				$ 272.84
3	241879203		Door Assembly,glass ,w/framing		Appelez-nous	-
10	241953401		Plug Button,black				$ 11.72
13	241866601		Door Stop,black ,rh				$ 11.58
15	241954601		Cover-door,stainless		Appelez-nous	-
18	242073801		Handle-door,stainless Steel		Appelez-nous	-
20	241866801		Door Closer,cam ,black Rh ,upper				$ 54.72
21	240383407		Screw,truss Hd Quad ,10 X 16 ,black   (Replaces: 240383408)				$ 12.76
22	241866401		Plate-door,upper Left				$ 59.58
23	241897403		Board-control,temp Control				$ 432.99
26	215503203		Screw,cr Pan Hd ,10-16 X 0.500			Immediately	$ 7.09
40	241866101		Cover-access		Appelez-nous	-
13A	241866602		Door Stop,black ,lh				$ 28.68
20A	241866802		Door Closer,cam ,black Lh ,upper				$ 17.06
21A	241906101		Screw-no.10 X 3/4 Tek		Appelez-nous	-
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
21D	241548003		Screw-handle Mtg   (Replaces: 241998201)				$ 3.03
22A	241866402		Plate-door,upper Right		Appelez-nous	-
22C	241866501		Plate-door,lower Left				$ 60.02
22D	241866502		Plate-door,lower Right		Appelez-nous	-
F21D	241947201		Washer-flat,.250 X 1.50 Od ,zinc		Appelez-nous	-
F6	241958501		Harness-wiring,door				$ 147.33
