SELECT A DIAGRAM

01 - Cover


03 - Door

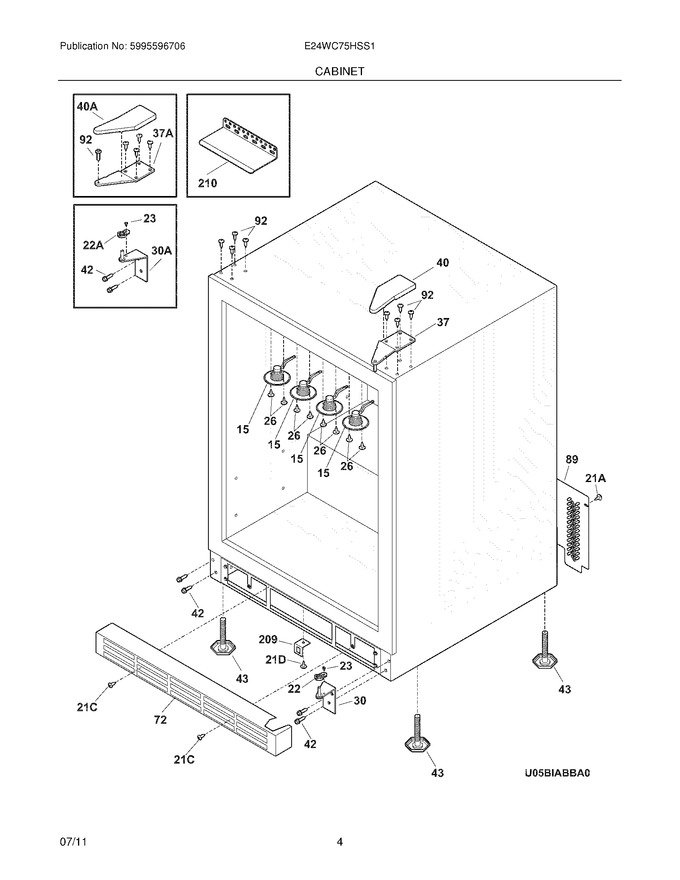

05 - Cabinet


07 - Shelves


09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
22	241882201		Door Closer,cam ,black				$ 125.73
23	134154100		Screw,no.10-32 X 1/4   (Replaces: 241904601)				$ 13.46
26	241904301		Screw,led Lighting		Appelez-nous	-
30	241882401		Bracket-lower Hinge,rh ,w/hinge Pin				$ 33.69
37	241882301		Hinge-upper,black				$ 36.86
40	241881801		Cover-upper Hinge,black ,rh				$ 19.38
42	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
43	241911501		Leveling Leg,screw				$ 4.06
72	241908401		Grille/kickplate,stainless				$ 395.82
89	241898002		Cover-access		Appelez-nous	-
92	241904501		Screw,upper Hinge		Appelez-nous	-
209	241909201		Bracket,harness		Appelez-nous	-
210	241903801		Bracket-anti Tip				$ 61.20
21A	241906101		Screw-no.10 X 3/4 Tek		Appelez-nous	-
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
21D	241500305		Screw,hex Washer Head ,8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
22A	241882202		Door Closer,cam ,black Lh ,lower				$ 14.60
30A	241882402		Bracket-lower Hinge,lh ,w/hinge Pin				$ 50.32
37A	241882302		Hinge-upper,black Lh				$ 54.29
40A	241881802		Cover-upper Hinge,black ,lh				$ 15.84
F15	5304520842		Light Assembly,led ,(4)   (Replaces: 241904201)				$ 215.46
FNI	241900701		Harness-intermediate, Uc,led Lighting				$ 24.22
NI	241908402		Grille/kickplate,stainless				$ 307.27

    View Diagram in Separate Window       Print Part List
