SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - Shelves

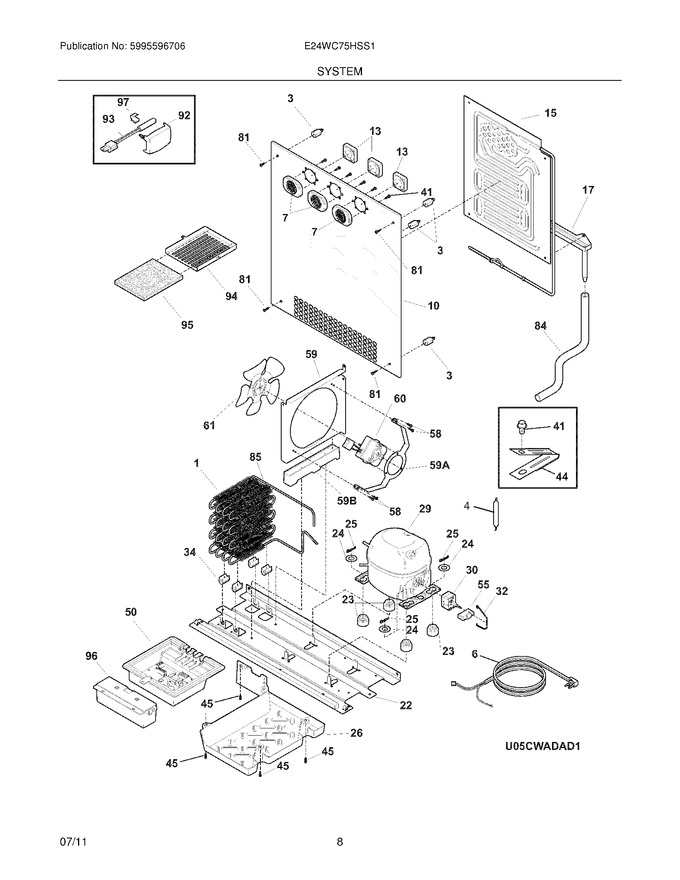

09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	241890001		Spacer-evap		Appelez-nous	-
4	5303305677		Drier-filter,r134a System   (Replaces: 218944002)			Immediately	$ 31.67
7	241890201		Cover-fan		Appelez-nous	-
10	241890503		Cover-evap Coil		Appelez-nous	-
17	241889801		Trough-drain		Appelez-nous	-
22	241888101		Base-compressor		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg				$ 2.84
26	241889901		Pan-defrost Drain		Appelez-nous	-
29	241931301		Compressor-emy45hsc		Appelez-nous	-
32	216649200		Clip,controller				$ 6.30
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
44	5304456288		Clamp-wiring Harness,strain Relief ,galv Steel		Appelez-nous	-
45	241906101		Screw-no.10 X 3/4 Tek		Appelez-nous	-
50	241511116		Board-main Power				$ 244.08
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
58	241953902		Screw,hex Washer Head ,8-18 X 3/8   (Replaces: 240433203)			Immediately	$ 17.11
59	241889701		Shroud,cond Fan Motor				$ 76.84
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
81	240555002		Screw,8-32 X 3/8 ,black   (Replaces: 240555004)			Immediately	$ 13.46
84	241931401		Tube-drain,lower		Appelez-nous	-
85	241898101		Tube-hot Loop		Appelez-nous	-
92	241512902		Cover-sensor,black		Appelez-nous	-
93	240597220		Sensor   (Replaces: 240597203)			Immediately	$ 5.16
94	241904001		Housing-filter,air				$ 32.61
97	241519401		Clip,sensor				$ 8.51
59A	241889601		Bracket-cond Motor		Appelez-nous	-
59B	241896401		Support,cond Shroud		Appelez-nous	-
F1	241931201		Condenser				$ 84.44
F13	241781901		Motor-evap Fan				$ 106.65
F15	241891801		Evaporator,w/heat Exchangr				$ 250.81
F30	241707717		Starter-ptc		Appelez-nous	-
F6	241516904		Cord-service   (Replaces: 241516901)			Immediately	$ 38.68
F60	242018301		Motor-condenser Fan			Immediately	$ 138.56
F95	EAFCBF		Filter-air   (Replaces: 242047801)			Immediately	$ 27.64
F96	241900001		Board-led Power				$ 281.56
FNI	241900401		Harness-led Driver				$ 110.10
FNI	241900701		Harness-intermediate, Uc,led Lighting				$ 24.22
FNI	241900201		Harness-evaporator				$ 105.32
FNI	241900501		Harness-wiring,machine Compt		Appelez-nous	-
NI	241532401		Channel				$ 30.47
NI	241931901		Washer,nylon		Appelez-nous	-
NI	241890002		Spacer-evap		Appelez-nous	-
NI	5304406721		Spacer-cond Tube,round ,5/8 Od X .81``lg		Appelez-nous	-
NI	241933201		Seal-coil Cover		Appelez-nous	-
NI	215503203		Screw,cr Pan Hd ,10-16 X 0.500			Immediately	$ 7.09
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
NI	218515401		Clip-grille				$ 17.72
NI	241919901		Clamp,cable		Appelez-nous	-
NI	240359403		Screw-fan Shroud,(2)				$ 3.79
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	241932701		Retainer,wire				$ 5.53
NI	241932601		Bushing-service Cord		Appelez-nous	-
NI	241932501		Harness-wiring,evap Fans		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
