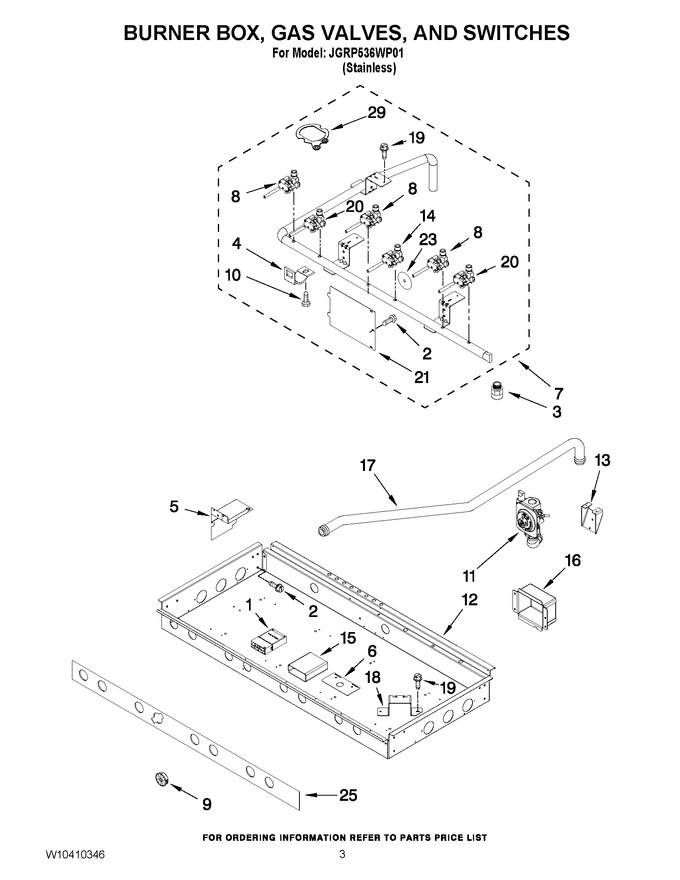

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 214.42
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
3	4453115		Adapter, Female				$ 108.60
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10367054		Bracket, Spark Module		Appelez-nous	-
6	W10115855		Holder, Strain Relief		Appelez-nous	-
7	W10402607		Manifold				$ 248.51
8	WPW10385582		Valve, Single (rf,lr)   (Replaces: W10385582)			Immediately	$ 292.16
9	W10189097		Bushing, Burner Box				$ 6.85
10	W10189140		Screw, Valve Mtg				$ 5.85
11	W11193822		Regulator,pressure   (Replaces: W10145584)				$ 255.06
12	W10371520		Burner Box		Appelez-nous	-
13	W10308042		Bracket, Pressure Regulator		Appelez-nous	-
14	WPW10385583		Valve, Single (rr)   (Replaces: W10385583)			Immediately	$ 284.66
15	8287102		Insulation, Spark Module		Appelez-nous	-
16	W10308051		Box, Broil		Appelez-nous	-
17	W10348600		Tube, Regulator				$ 177.62
18	W10369547		Bracket, Burner		Appelez-nous	-
19	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
20	WPW10385582		Valve, Dual (lf)   (Replaces: W10385582)			Immediately	$ 292.16
21	W10115843		Cover, Ignition		Appelez-nous	-
23	W10423373		Seal, Switch Cover		Appelez-nous	-
25	W11688578		Insulation   (Replaces: W10145622)		Appelez-nous	-
29	8286930		Gasket, Orifice				$ 82.05
NI	WPW10368165		Tubing, Gas (lr)   (Replaces: W10368165)				$ 63.53
NI	W10368167		Tubing, Gas (lf-right)				$ 149.76
NI	W10368166		Tubing, Gas (lf-left)				$ 46.28
NI	W10276501		Tubing, Gas (rr)		Appelez-nous	-
NI	W10368335		Tubing, Gas (rf-right)			Immediately	$ 147.93
