Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP12990527 Screw   (Replaces: 3400843) In-Stock Immediately $ 7.15

2 W10299182 Vent, Cooling Top In-Stock Immediately $ 129.39

3 WPW10245511 Blower   (Replaces: W10245511) In-Stock Immediately $ 275.42

4 W10349015 Vent, Cooling Bottom In-Stock Immediately $ 172.35

5 W10160875 Plate, Latch Appelez-nous -
6 W10340579 Chimney, Box Assembly Appelez-nous -
8 W10145748 Bracket, Blower Appelez-nous -
9 W10160858 Cover, Latch Special Order $ 65.95

11 W10246087 Insulation, Chimney Appelez-nous -
12 W10246086 Retainer, Insulation Chimney Appelez-nous -
13 W10145381 Cover, Channel Appelez-nous -
14 W10145363 Duct, Primary Air Appelez-nous -
15 WP3400805 Screw   (Replaces: 3400805) Special Order $ 6.47


    View Diagram in Separate Window     Print Icon   Print Part List

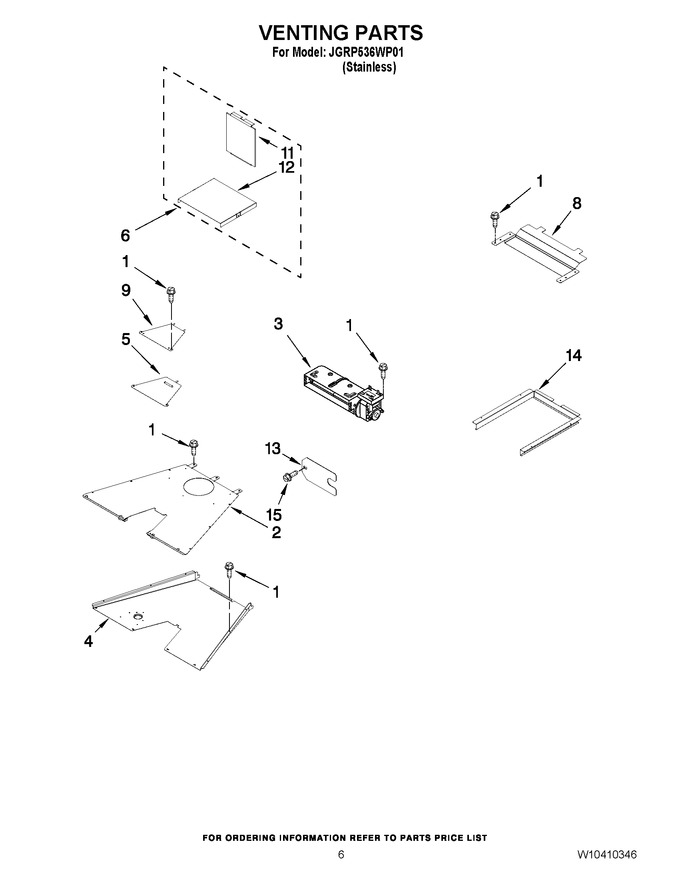

Diagram for JGRP536WP01
