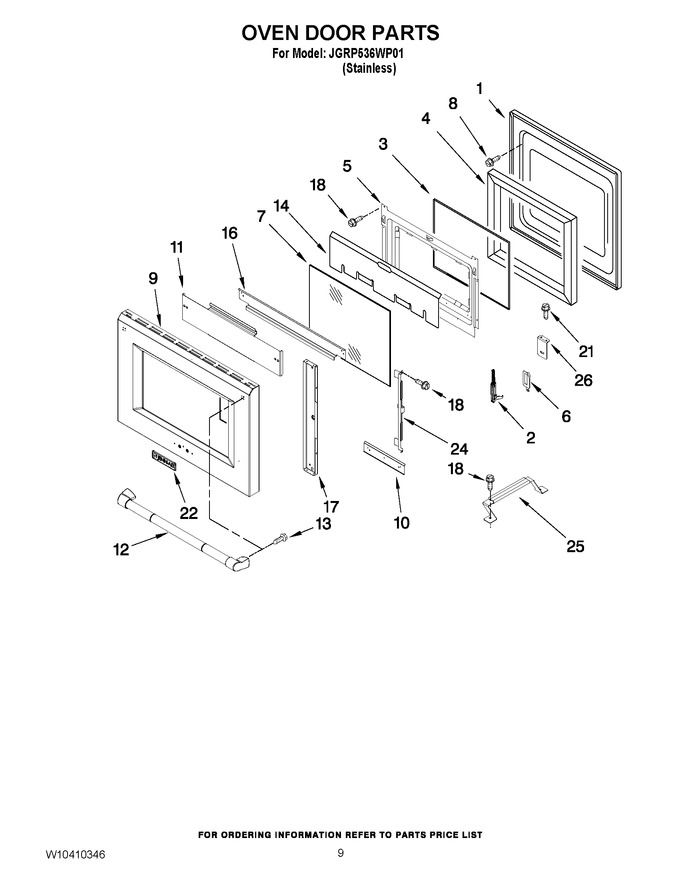

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188330		Door Liner				$ 137.38
2	W10269203		Hinge, Door (right)		Appelez-nous	-
2	W10877227		Hinge, Door (left)   (Replaces: W10269204)			Immediately	$ 59.81
3	WPW10226005		Glass, Inner   (Replaces: W10226005)				$ 264.02
4	W11706557		Insulation, Door   (Replaces: W10115765)				$ 60.51
5	W10859077		Retainer, Glass   (Replaces: W10188324)				$ 193.61
6	W10115876		Cover, Hinge (left)		Appelez-nous	-
6	W10115877		Cover, Hinge (right)		Appelez-nous	-
7	WPW10188327		Glass, Inner   (Replaces: W10188327)				$ 202.12
8	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 6.47
9	W10322619		Panel, Exterior (includes Glass)				$ 400.65
10	W10226024		Shield,heat(btm)		Appelez-nous	-
11	W10145764		Bracket, Center Outer Glass		Appelez-nous	-
12	W10145770		Door Handle				$ 276.50
12	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 6.47
13	WPW10276043		Screw, Handle   (Replaces: W10276043)				$ 6.26
14	W10188328		Shield, Heat		Appelez-nous	-
16	W10145761		Bracket, Center		Appelez-nous	-
17	W10145761		Bracket, Side		Appelez-nous	-
18	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
21	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
22	WPW10159578		Nameplate   (Replaces: W10159578)			Immediately	$ 75.89
24	WP9759229		Bracket(2nd Glass)   (Replaces: 9759229)				$ 160.71
25	9759230		Bracket(3rd Glass)				$ 36.30
26	W10115715		Bracket, Door Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
