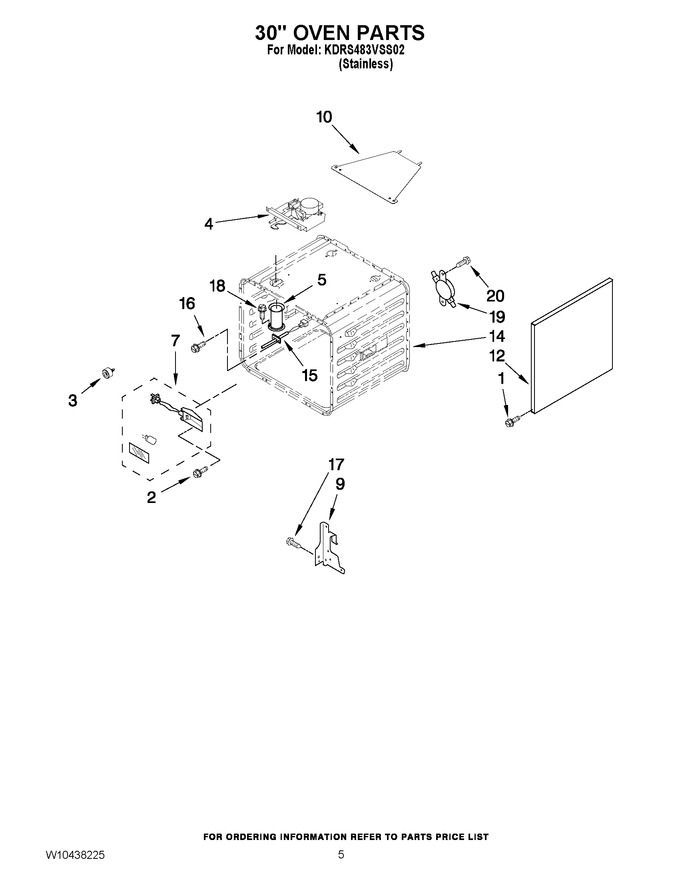

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.47 | ||||
| 2 | 4449748 | Screw |
|
$ 12.20 | |||||
| 3 | W10105790 | Assembly, Bumper |
|
$ 6.35 | |||||
| 4 | W11029221 | Latch, Motorized (Replaces: W10195935) |
|
Immediately | $ 280.85 | ||||
| 5 | W10288061 | Tube, Vent |
|
$ 99.38 | |||||
| 7 | WPW10307114 | Oven Light Assy (Replaces: W10307114) |
|
Immediately | $ 99.44 | ||||
| 9 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| 9 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 10 | W10160858 | Cover, Latch |
|
$ 65.95 | |||||
| 12 | W10269206 | Side, Chassis (left) |
|
$ 201.67 | |||||
| 12 | W10269205 | Side, Chassis (right) |
|
$ 201.88 | |||||
| 14 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 15 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 86.25 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 19 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 100.66 | ||||
| 20 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| NI | W11684730 | Insulation, Wrap, 30`` (Replaces: 4449316) |
|
$ 107.01 | |||||
| NI | W10160806 | Insulation, Back, 30`` |
|
- |
