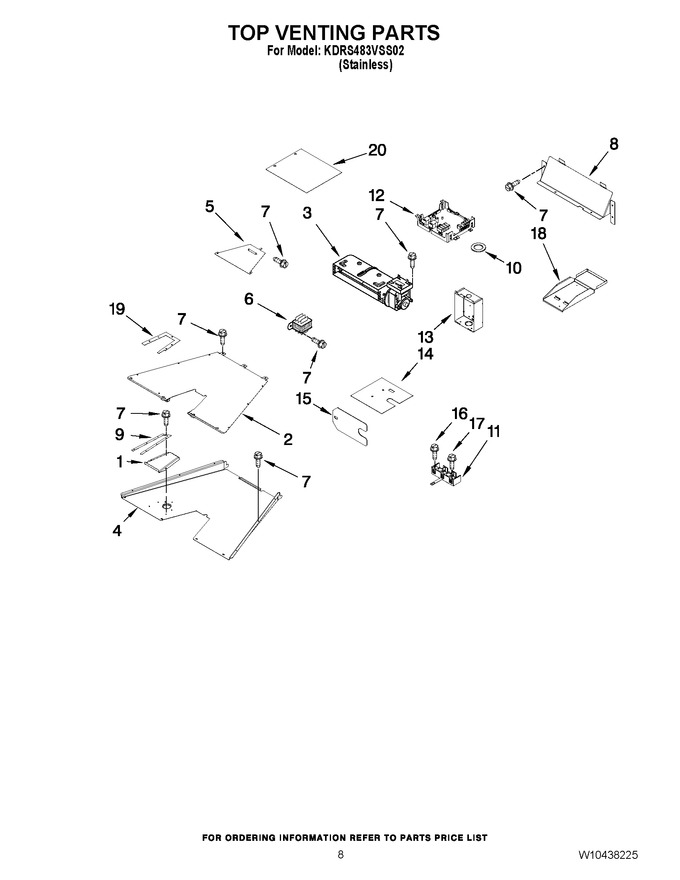

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10246075		Slope,exhaust Vent (30``)		Appelez-nous	-
1	W10226008		Slope,exhaust Vent (18``)		Appelez-nous	-
2	W10160896		Vent, Cooling Top		Appelez-nous	-
3	WPW10245511		Blower   (Replaces: W10245511)			Immediately	$ 275.42
4	W10246078		Vent-bottom		Appelez-nous	-
5	W10160875		Plate, Cooling Latch		Appelez-nous	-
6	WPW10111628		Transformer, Control   (Replaces: W10111628)				$ 254.91
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
8	W10160844		Bracket, Blower		Appelez-nous	-
9	W10270402		Seal, Vent Slope (30``)		Appelez-nous	-
10	W10270396		Chimney Seal		Appelez-nous	-
11	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 39.72
12	WPW10116185		Contol   (Replaces: W10116185)				$ 365.12
13	W10115858		Box, Terminal				$ 104.57
14	9759721		Insulator, Terminal Box		Appelez-nous	-
15	W10618712		Cover, Channel   (Replaces: W10269198)		Appelez-nous	-
16	WP3196163		Screw   (Replaces: 3196163)				$ 6.26
17	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
18	W10249337		Support, Control		Appelez-nous	-
19	W10270397		Seal, Foam		Appelez-nous	-
20	W10239444		Seal, Control		Appelez-nous	-
