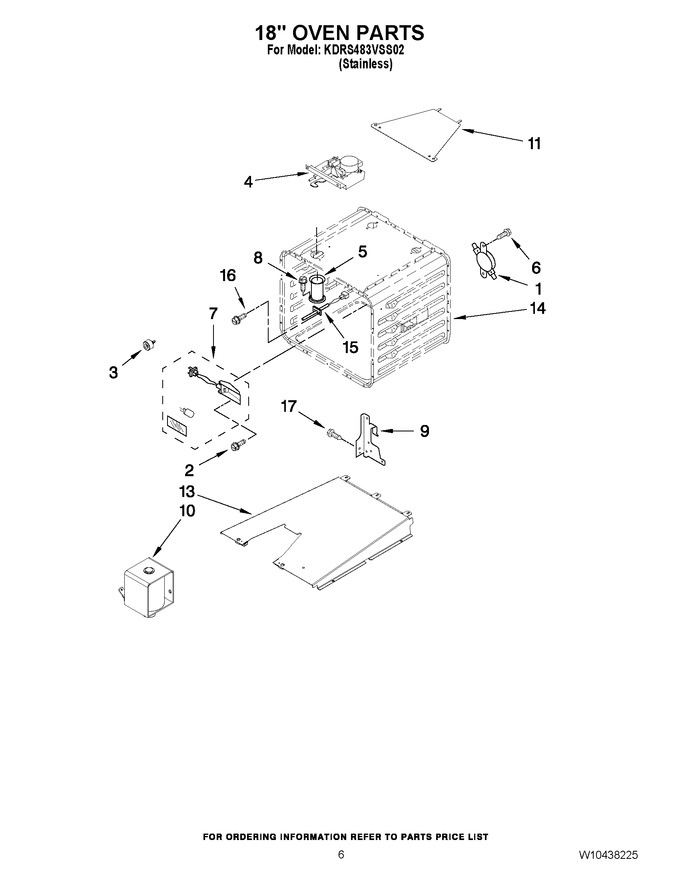

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
2	4449748		Screw				$ 12.20
3	W10105790		Assembly, Bumper				$ 6.35
4	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 280.85
5	W10288078		Tube, Vent				$ 100.16
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
7	WPW10307114		Oven Light Assy   (Replaces: W10307114)			Immediately	$ 99.44
8	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
9	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
9	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
10	W10273653		Vent, Cooling Bottom		Appelez-nous	-
11	W10160858		Cover, Latch				$ 65.95
13	W10160897		Vent, Cooling Top		Appelez-nous	-
14	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
15	W10319835		Sensor				$ 205.10
16	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
NI	W10145745		Insulation, Back, 18``		Appelez-nous	-
NI	W11688722		Insulation, Wrap, 18``   (Replaces: W10115993)		Appelez-nous	-
