SELECT A DIAGRAM

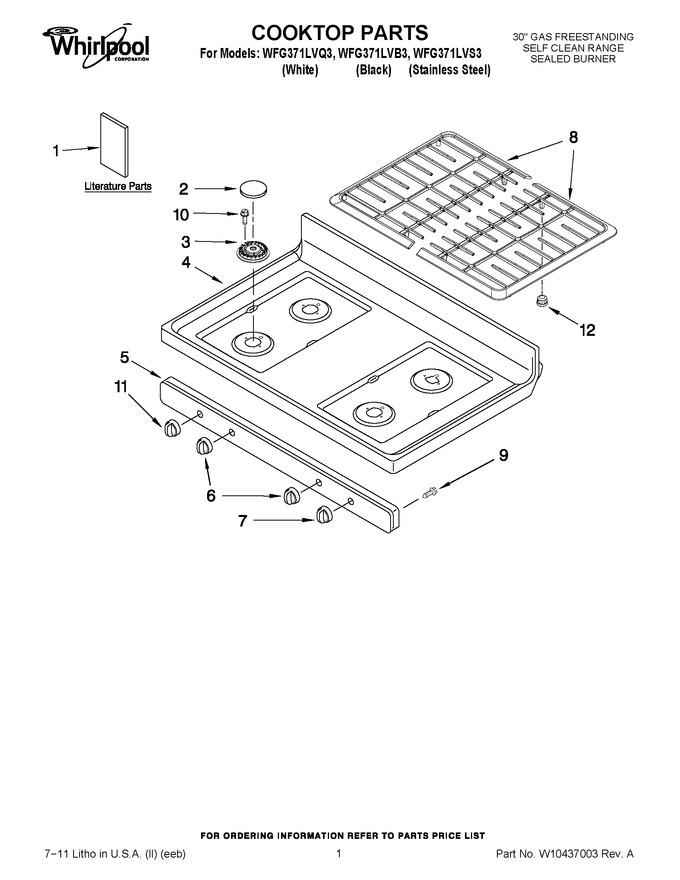

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10413012		Installation Instructions		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
1	W10196153		Owners Manual		Appelez-nous	-
1	W10357517		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
2	WPW10183375		Cap, Burner (black)   (Replaces: W10183375)				$ 132.80
2	W10183373		Cap, Burner (wetstone)		Appelez-nous	-
3	WPW10406243		Burner (right Rear)   (Replaces: 8286181)			Immediately	$ 33.50
3	WPW10406283		Burner (left Rear)   (Replaces: W10194076)				$ 66.87
3	WPW10406878		Burner (l.front, R.front)   (Replaces: 8286183)			Immediately	$ 92.12
4	W10153562		Cooktop (white)		Appelez-nous	-
4	W10153563		Cooktop (black)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 151.01
5	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 249.07
6	WPW10160648		Knob, Control (white)   (Replaces: W10160648)				$ 20.75
6	WPW10160649		Knob, Control (black)   (Replaces: W10160649)				$ 20.76
7	WPW10134131		Knob, Accusimmer (black)   (Replaces: W10134131)				$ 21.10
7	WPW10134130		Knob, Accusimmer (white)   (Replaces: W10134130)				$ 21.43
8	W10354843		Set, Burner Grate (full Width) (black)		Appelez-nous	-
8	W10354846		Set, Burner Grate (full Width) (grey)		Appelez-nous	-
9	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 6.42
10	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
11	WPW10134134		Knob, Powerburner (black)   (Replaces: W10134134)				$ 21.43
11	W10134133		Knob, Powerburner (white)				$ 18.82
12	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 9.54

    View Diagram in Separate Window       Print Part List
