SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts

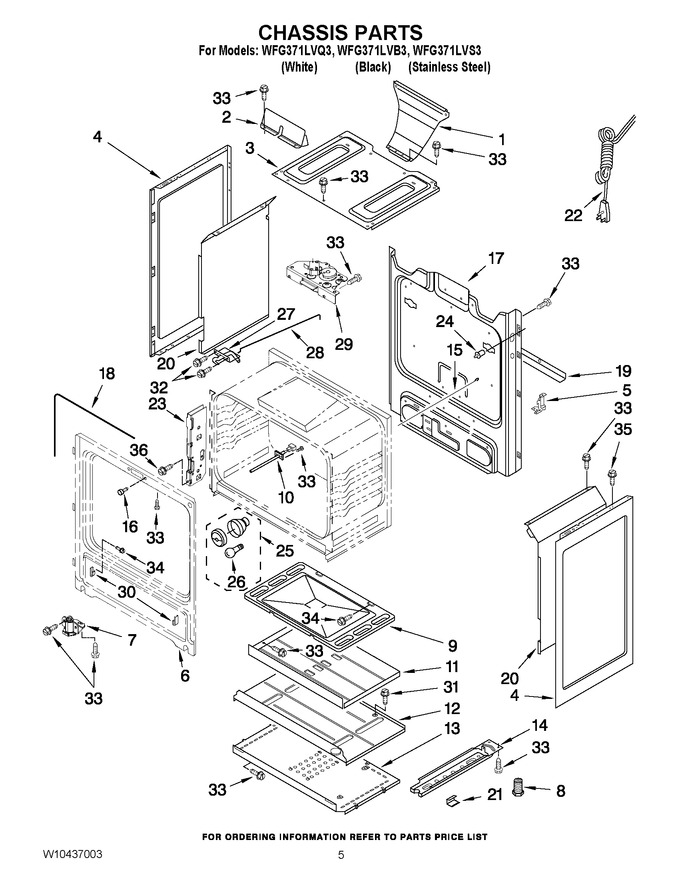

04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Flue Box   (Replaces: W10153186)				$ 135.26
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 63.86
3	W11379351		Burner Box   (Replaces: 8273036)				$ 55.02
4	WPW10575396		Panel, Side (white)   (Replaces: W10322769)				$ 133.84
4	W11730303		Panel, Side (black)   (Replaces: W10322770)			Immediately	$ 148.35
5	8523249		Brkt, Manifold Mtg		Appelez-nous	-
6	N/P		Frame, Front (not Serviced)		Appelez-nous	-
7	WPW10341186		Assembly, Foot   (Replaces: W10341186)			Immediately	$ 29.33
8	WPW10058460		Foot, Rear   (Replaces: W10058460)			Immediately	$ 7.07
9	WP3195097		Bottom, Oven   (Replaces: 3195097)				$ 213.94
10	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
11	8053967		Baffle, Burner				$ 270.82
12	8053969		Shield, Heat				$ 96.89
13	8053968		Shield, Lower		Appelez-nous	-
14	W11818353		Rail, Base   (Replaces: 9760314)				$ 53.71
15	9757239		Rod, Door Switch Rear Mount				$ 82.60
16	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 48.05
17	W10416100		Back, Main				$ 80.91
18	W11542153		Seal, Oven   (Replaces: 8522416)			Immediately	$ 45.18
19	W10387695		Brace, Main Back		Appelez-nous	-
20	9761449		Retainer, Insul. (left Hand)				$ 285.87
20	9761448		Retainer, Insul. (right Hand)		Appelez-nous	-
21	W10137382		Clip, Panel			Immediately	$ 41.50
22	W11582239		Cord, Power   (Replaces: 9757891)				$ 15.08
23	W10647259		Brkt - Hinge   (Replaces: W10289077)			Immediately	$ 8.39
24	WP9757262		Switch, Door   (Replaces: 9757262)			Immediately	$ 130.00
25	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 78.31
26	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
27	WP9761013		Latch, Door   (Replaces: 9761013)				$ 219.74
28	W10078370		Rod, Latch				$ 81.63
29	WPW10107820		Latch-mtr   (Replaces: W10107820)				$ 265.33
30	WPW10114344		Glide, Drawer   (Replaces: W10114344)			Immediately	$ 7.34
31	WP7101P246-60		Screw   (Replaces: 3196177)				$ 6.98
32	W11169708		Screw   (Replaces: 3196560)				$ 13.36
33	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
34	W10379120		Screw		Appelez-nous	-
35	WP3196175		Screw   (Replaces: 3196165)				$ 6.47
36	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
NI	W11688737		Insulation, Back   (Replaces: W10180437)				$ 105.20
NI	W11684915		Insulation, Wrap   (Replaces: 8524099)				$ 105.98

    View Diagram in Separate Window       Print Part List
