View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts

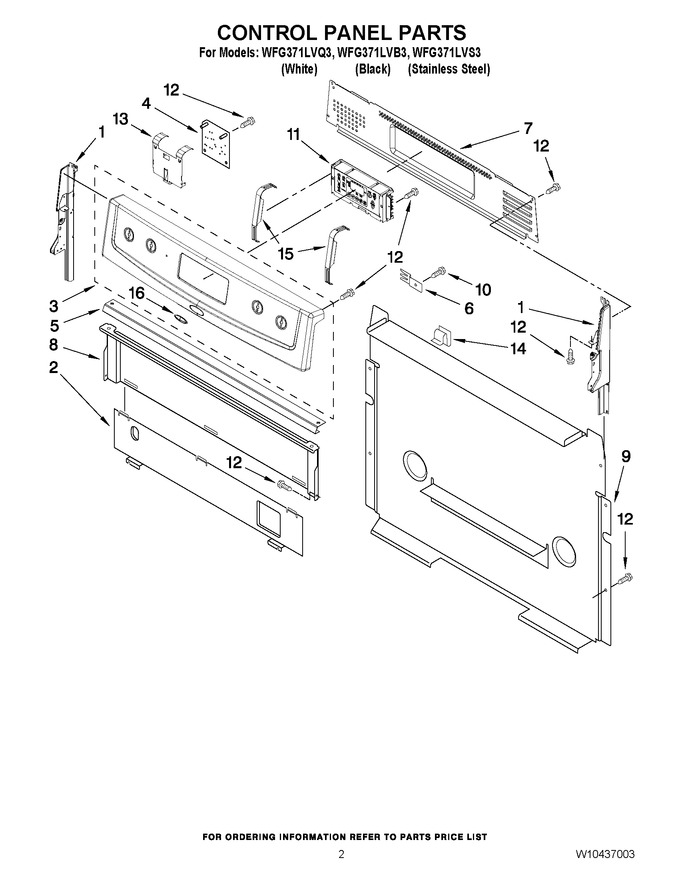

02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 52.14 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 1 | W11219365 | Endcap (white Hand Left) (Replaces: W10184433) |
|
$ 36.39 | |||||
| 2 | 8053505 | Shield-heat, Lwr |
|
$ 142.19 | |||||
| 3 | W10170637 | Panel, Console (stainless Steel) |
|
$ 130.87 | |||||
| 3 | W10184042 | Panel, Console (white) |
|
$ 133.94 | |||||
| 3 | W10184044 | Panel, Console (black) |
|
$ 128.17 | |||||
| 4 | WPW10331686 | Module, Spark (Replaces: W10331686) |
|
Immediately | $ 354.47 | ||||
| 5 | W10211996 | Brkt-mntg, Console |
|
- | |||||
| 6 | 8523412 | Bracket, Support |
|
$ 143.91 | |||||
| 7 | W10198745 | Cover, Upper |
|
$ 110.48 | |||||
| 8 | W10192841 | Shield, Heat |
|
$ 91.45 | |||||
| 9 | W10184370 | Cover, Back |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 11 | WPW10424330 | Control, Range Lcc190 (white) (Replaces: W10183021) |
|
$ 373.36 | |||||
| 11 | WPW10424330 | Control, Range Lcc190 (black) (Replaces: W10183020) |
|
$ 373.36 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 13 | 9762726 | Brkt-mntg, Dsi |
|
$ 29.39 | |||||
| 14 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 10.85 | |||||
| 15 | 9762078 | Bracket, Eoc Mount |
|
$ 38.13 | |||||
| 16 | W10209617 | Badge |
|
$ 35.30 |
