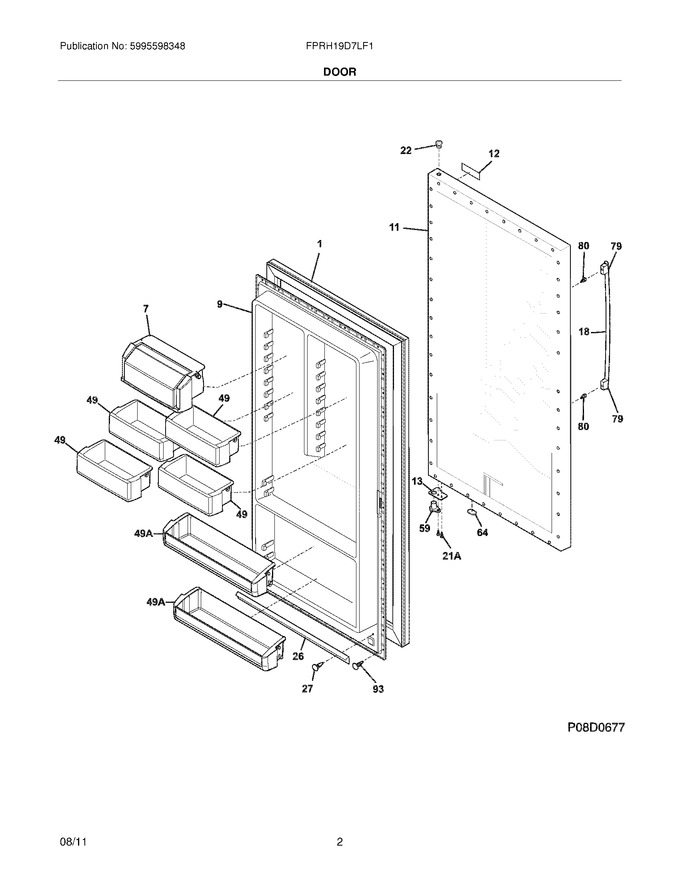

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505782 | Gasket-door,gray (Replaces: 216522370) |
|
Immediately | $ 235.60 | ||||
| 7 | 297326200 | Door-dairy |
|
$ 122.58 | |||||
| 9 | 297280800 | Panel-inner Door,frzr |
|
Immediately | $ 223.97 | ||||
| 11 | P297329300 | Panel-outer Door,stainless (Replaces: 297353500) |
|
$ 801.94 | |||||
| 12 | 242015101 | Nameplate |
|
$ 4.55 | |||||
| 13 | 297302800 | Door Stop,rh |
|
$ 22.16 | |||||
| 18 | 297330300 | Handle Assembly,stainless ,w/endcaps |
|
Immediately | $ 390.76 | ||||
| 22 | 216970801 | Bearing,hinge ,gray ,top |
|
$ 4.25 | |||||
| 26 | 216524201 | Gasket,secondary |
|
$ 49.62 | |||||
| 27 | 5304472186 | Clip,panel Mtg |
|
$ 11.57 | |||||
| 49 | 297295300 | Bin-door,2-liter |
|
$ 139.39 | |||||
| 59 | 297302900 | Bearing,door Stop |
|
$ 7.00 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base (Replaces: 216403701) |
|
$ 58.12 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 297347700 | Screw,hourglass ,10-32 X .375 |
|
$ 14.96 | |||||
| 93 | 218781101 | Screw,pan Head ,8-18 X 0.625 |
|
$ 15.60 | |||||
| 21A | 297197500 | Screw,door Stop Mtg ,fh38-16x.750 ,p Twin |
|
$ 14.46 | |||||
| 49A | 297295400 | Bin-door,gallon ,(2) |
|
$ 170.94 | |||||
| NI | 297355300 | Label,quick Start |
|
- | |||||
| NI | 297175300 | Wrench,allen |
|
$ 15.49 | |||||
| NI | 297048000 | Screw,anchor ,no.8 ,white |
|
$ 12.05 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 241701901 | Screw Driver |
|
- |
