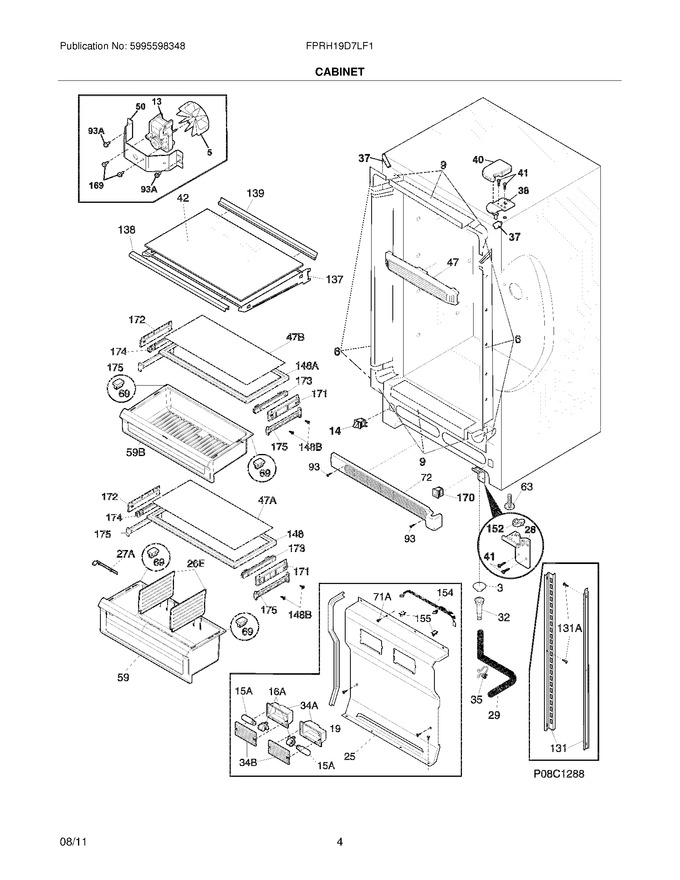

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297259600		Fan Blade,evaporator				$ 9.50
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216822901)			Immediately	$ 70.16
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099254		Cover-evaporator				$ 97.13
28	5303018740		Hinge-lower,rh W/bearing   (Replaces: 297302510)				$ 41.93
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip,wire Retainer				$ 22.42
37	297273903		Trim-cabinet Corner,silver Mist ,(2)		Appelez-nous	-
38	297303900		Hinge-upper,rh				$ 27.32
40	297304000		Cover-hinge,gray ,rh				$ 20.63
41	240578902		Screw,hex Head ,1/4-20x5/8 ,hinge ,(4)   (Replaces: 297236250)			Immediately	$ 14.18
42	297265900		Glass-shelf				$ 156.15
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 25.31
50	08013207		Bracket Fan Motor				$ 12.92
59	A11791811		Bin,crisper ,assy   (Replaces: 297295700)				$ 211.52
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
69	297297300		Bumper,crisper		Appelez-nous	-
72	297036907		Grille/kickplate,32`` ,gray   (Replaces: 297036904)				$ 39.29
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
131	297130200		Channel-shelf Mtg,side ,(2)				$ 55.99
137	297050600		Frame-shelf,cantilever ,(2)			Immediately	$ 179.29
138	297261400		Trim-shelf,front				$ 33.18
139	297261500		Trim-shelf,rear				$ 26.04
148	297271700		Frame-crisper Cover				$ 215.20
152	297302700		Bearing-hinge		Appelez-nous	-
154	297053000		Wire,jumper				$ 57.42
155	30534600		Clip,wire ,(2)   (Replaces: 5303313703)				$ 3.79
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
170	297280403		Valve,breather				$ 21.69
171	297092700		Bracket,crisper Cover ,rh				$ 55.36
172	297092701		Bracket,crisper Cover ,lh				$ 56.88
173	5304515502		Slide,crisper ,rh ,w/clips   (Replaces: 297291210)				$ 77.36
174	5304515501		Slide,crisper ,lh ,w/clips   (Replaces: 297291211)				$ 78.08
175	297099500		Support-crisper			Immediately	$ 47.03
15A	241552802		Light Bulb/lamp,short   (Replaces: 297048600)			Immediately	$ 50.45
16A	297139501		Socket,light/lamp ,25 W				$ 19.52
26E	297099400		Divider-crisper				$ 67.83
27A	297295800		Knob,humidity Contrl				$ 18.38
34A	297053102		Shield-light				$ 31.76
34B	297053200		Lens,light				$ 43.95
47A	297102705		Glass,crisper Cover				$ 141.04
47B	297102704		Glass,crisper Cover				$ 146.76
59B	297292302		Drawer,deli-assy   (Replaces: 297292300)				$ 182.44
71A	297146820		Screw,8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F131	297146821		Screw,th ,8-18x.470 Ab Qx ,white ,(6)				$ 4.94
F148	297142600		Screw,blunt ,8-32 X 5/8				$ 13.01
F148	297271701		Frame-crisper Cover,lower				$ 194.30
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297164651		Bracket,rh Leg Levelor				$ 17.51
NI	297164650		Bracket,lh Leg Levelor				$ 18.43
NI	297330200		Energy Guide		Appelez-nous	-
NI	216327800		Clip,wire		Appelez-nous	-
