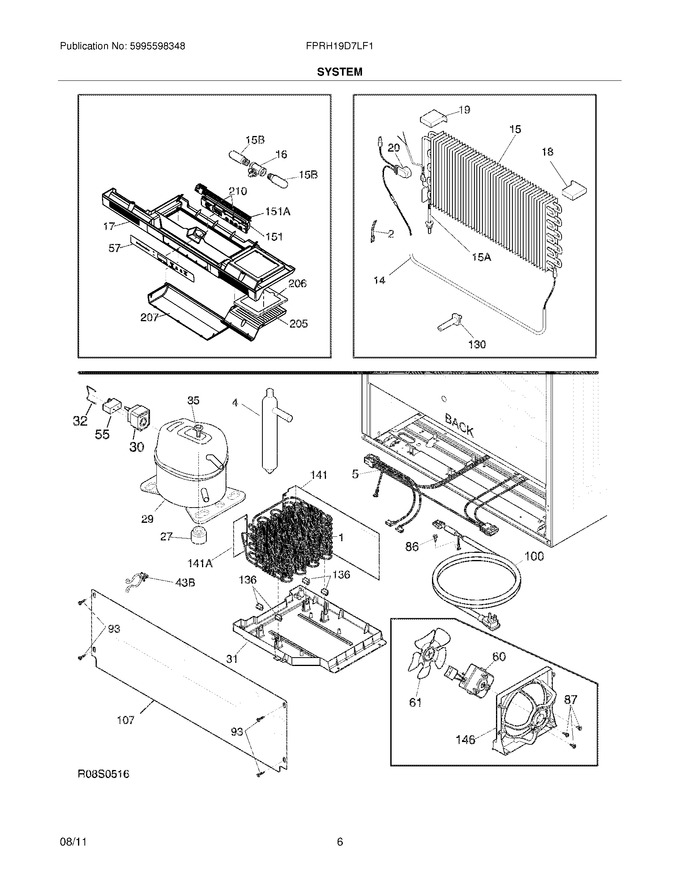

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 16 | 241622802 | Socket-light,frz Light |
|
$ 65.93 | |||||
| 17 | 297269000 | Box-control |
|
$ 140.12 | |||||
| 18 | 297078701 | Insulator-evap,styrofoam ,rh |
|
$ 3.62 | |||||
| 19 | 297078801 | Insulator-evap,styrofoam ,lh |
|
$ 3.62 | |||||
| 20 | 216731001 | Thermostat, Defrost |
|
Immediately | $ 81.75 | ||||
| 27 | 297293300 | Grommet,compressor |
|
- | |||||
| 30 | 216954210 | Controller |
|
$ 85.05 | |||||
| 31 | 297165800 | Pan-drain |
|
$ 89.15 | |||||
| 32 | 241544101 | Clamp,elec Cont Mtg ,compressor ,bale Wire |
|
- | |||||
| 35 | 297368500 | Bolt,compressor |
|
- | |||||
| 55 | 297286803 | Capacitor-run,15 Mf (Replaces: 216985001) |
|
Immediately | $ 28.77 | ||||
| 57 | 297269400 | Overlay |
|
$ 31.19 | |||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 87 | 5304463290 | Screw,hi-lo Blunt ,no.8-18x1/2 |
|
- | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 107 | 297165400 | Shield,compressor ,compartment |
|
$ 19.85 | |||||
| 130 | 297244700 | Support,evaporator Mtg |
|
$ 4.26 | |||||
| 136 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| 141 | 297164200 | Divider,air Flow |
|
$ 26.23 | |||||
| 146 | 297164000 | Shroud-fan Orfice |
|
$ 76.97 | |||||
| 205 | 297294301 | Holder,air Filter |
|
$ 34.31 | |||||
| 206 | EAFCBF | Filter-air (Replaces: 242047801) |
|
Immediately | $ 27.64 | ||||
| 207 | 297294500 | Shield-light,clear |
|
$ 51.46 | |||||
| 208 | 297355201 | Guard-wire |
|
- | |||||
| 210 | 216905301 | Screw,ph 3-24x.25 ,electronic Assy |
|
$ 14.46 | |||||
| 15A | 297217900 | Heat Exchanger (Replaces: 297319400) |
|
Immediately | $ 91.82 | ||||
| 15B | 5304517886 | Light Bulb,short ,blue Tint ,40w (Replaces: 297114000) |
|
Immediately | $ 73.06 | ||||
| 43B | 297315800 | Clip,wire |
|
$ 10.13 | |||||
| F1 | 297152200 | Condenser,dynamic |
|
$ 171.33 | |||||
| F100 | 297366805 | Cord-power,angled (Replaces: 297169905) |
|
$ 68.68 | |||||
| F14 | 216730700 | Heater-defrost |
|
Immediately | $ 116.44 | ||||
| F141 | 297194700 | Divider,small ,air Flow |
|
- | |||||
| F146 | 216337701 | Screw,hwh ,10-24 X 0.500 ,swage |
|
$ 14.41 | |||||
| F15 | 297414901 | Evaporator (Replaces: 216997300) |
|
Immediately | $ 171.34 | ||||
| F151 | 297327800 | Harness-jumper |
|
$ 121.68 | |||||
| F151 | 297326500 | Electronic Control,assy |
|
Immediately | $ 324.80 | ||||
| F29 | 5304507765 | Compressor,w/o Electricals (Replaces: 297068200) |
|
Immediately | $ 677.23 | ||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938601) |
|
Immediately | $ 31.67 | ||||
| F5 | 297334000 | Harness-main |
|
$ 32.25 | |||||
| F60 | 297279500 | Motor-condenser Fan |
|
Immediately | $ 141.66 | ||||
| NI | 297110400 | Thermistor |
|
Immediately | $ 72.68 | ||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NI | 241500305 | Screw, Self Pierce,no.8 ,18x.63 (Replaces: 297174300) |
|
$ 3.03 |
