| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

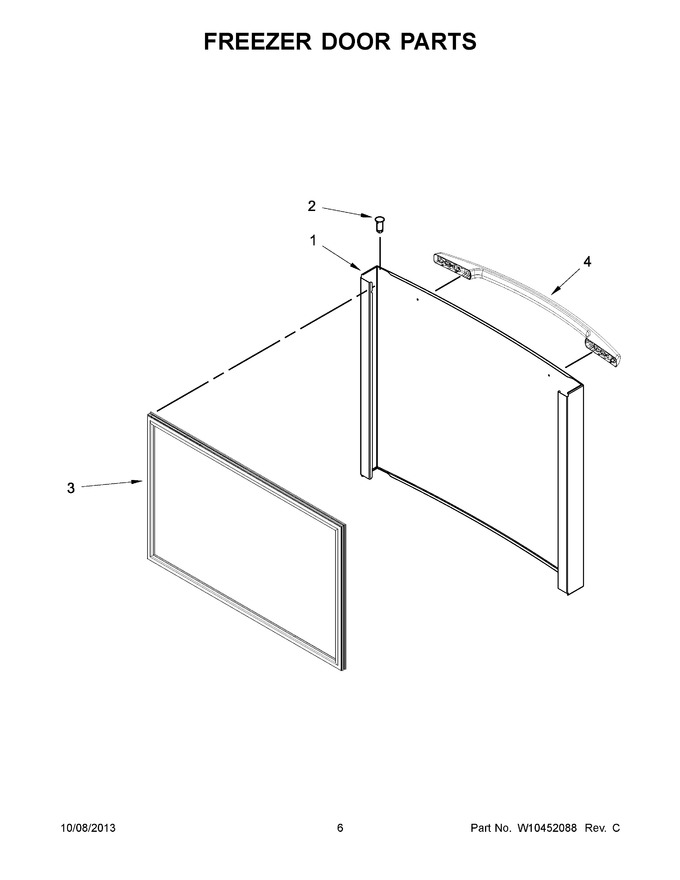

| 1 | LW10413531 | Freezer Door (includes Illus. 2 & 3) (mono Stainless) (Replaces: W10413531) |
|
Immediately | $ 732.56 | ||||
| 1 | LW10413530 | Freezer Door (includes Illus. 2 & 3) (black) (Replaces: W10413530) |
|
$ 425.60 | |||||
| 1 | LW10353182 | Freezer Door (includes Illus. 2 & 3) (white) (Replaces: W10353182) |
|
$ 522.47 | |||||
| 2 | W11189115 | Thimble, Top (left Hand) (Replaces: W10334042) |
|
$ 10.89 | |||||
| 3 | W10836785 | Gasket, Fc (grey) (Replaces: W10413469) |
|
$ 250.46 | |||||
| 3 | W10460611 | Gasket, Fc (white) (Replaces: W10353194) |
|
Immediately | $ 260.73 | ||||
| 3 | W11625017 | Gasket, Fc (black) (Replaces: W10413467) |
|
$ 291.16 | |||||
| 4 | W10360538 | Handle Assembly (white) |
|
$ 54.97 | |||||
| 4 | W10409179 | Handle Assembly (black) |
|
$ 48.50 | |||||
| 4 | W10409180 | Handle Assembly (stainless) |
|
$ 52.48 |
