View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

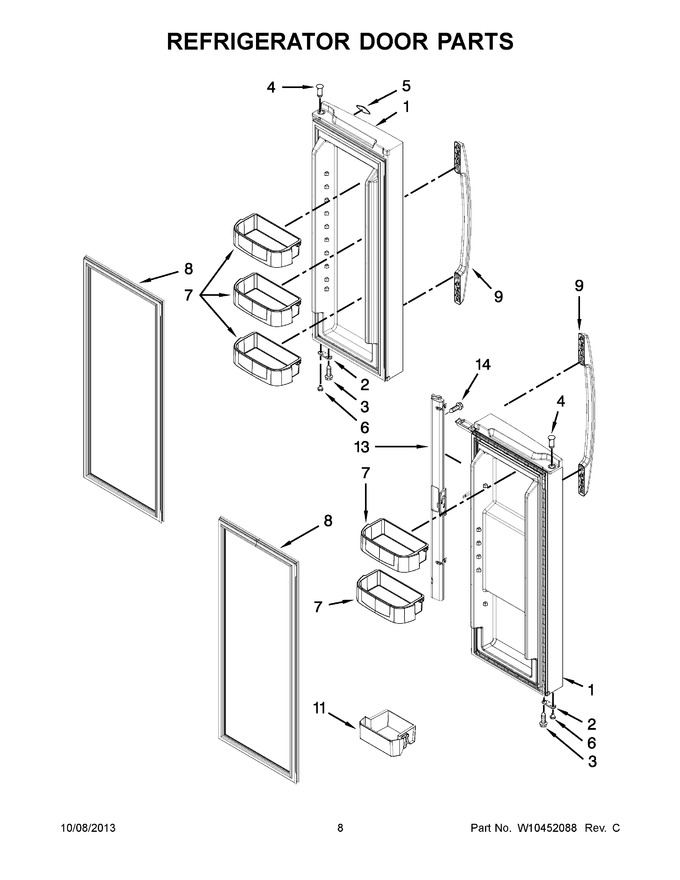

02 - Cabinet Parts
03 - Liner Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10393587 | Refrigerator Door (includes No.8) (left Hand (white)) (Replaces: W10393587) |
|
$ 516.87 | |||||
| 1 | LW10353181 | Refrigerator Door (includes No.8) (right Hand (white)) (Replaces: W10353181) |
|
$ 705.92 | |||||
| 1 | LW10413522 | Refrigerator Door (includes No.8) (left Hand (black)) (Replaces: W10413522) |
|
$ 409.96 | |||||
| 1 | LW10413518 | Refrigerator Door (includes No.8) (right Hand (black)) (Replaces: W10413518) |
|
$ 546.14 | |||||
| 1 | LW10413524 | Refrigerator Door (includes No.8) (left Hand (mono Stainless)) (Replaces: W10413524) |
|
$ 705.95 | |||||
| 1 | LW10413519 | Refrigerator Door (includes No.8) (right Hand (mono Stainless)) (Replaces: W10413519) |
|
$ 709.32 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 4 | W11189115 | Thimble (left Hand) (Replaces: W10334042) |
|
$ 10.89 | |||||
| 4 | W11544568 | Thimble (right Hand) (Replaces: W10366270) |
|
Immediately | $ 11.96 | ||||
| 5 | WPW10170766 | Badge, Maytag (Replaces: W10170766) |
|
Immediately | $ 60.43 | ||||
| 6 | WPW10470155 | Door Closure (Replaces: W10397037) |
|
Immediately | $ 6.47 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10331764) |
|
Immediately | $ 64.96 | ||||
| 8 | WPW10460580 | Gasket, Rc (grey) (Replaces: W10413468) |
|
Immediately | $ 199.36 | ||||
| 8 | W10460612 | Gasket, Rc (beige) (Replaces: W10353189) |
|
Immediately | $ 209.42 | ||||
| 8 | W10460610 | Gasket, Rc (black) (Replaces: W10413465) |
|
$ 203.19 | |||||
| 9 | WPW10252284A | Handle Assembly (white) (Replaces: W10252284) |
|
$ 65.39 | |||||
| 9 | W10252285 | Handle Assembly (black) |
|
- | |||||
| 9 | W10252288A | Handle Assembly (stainless) (Replaces: W10252288) |
|
$ 111.31 | |||||
| 11 | WPW10372916 | Shallow Bin (Replaces: W10372916) |
|
Immediately | $ 189.40 | ||||
| 13 | WPW10624451 | Flipper Mullion Assembly (white) (Replaces: W10448918) |
|
Immediately | $ 116.04 | ||||
| 13 | W11692845 | Flipper Mullion Assembly (black) (Replaces: W10448923) |
|
$ 207.14 | |||||
| 13 | WPW10624450 | Flipper Mullion Assembly (grey) (Replaces: W10448924) |
|
Immediately | $ 201.45 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 6.69 |
