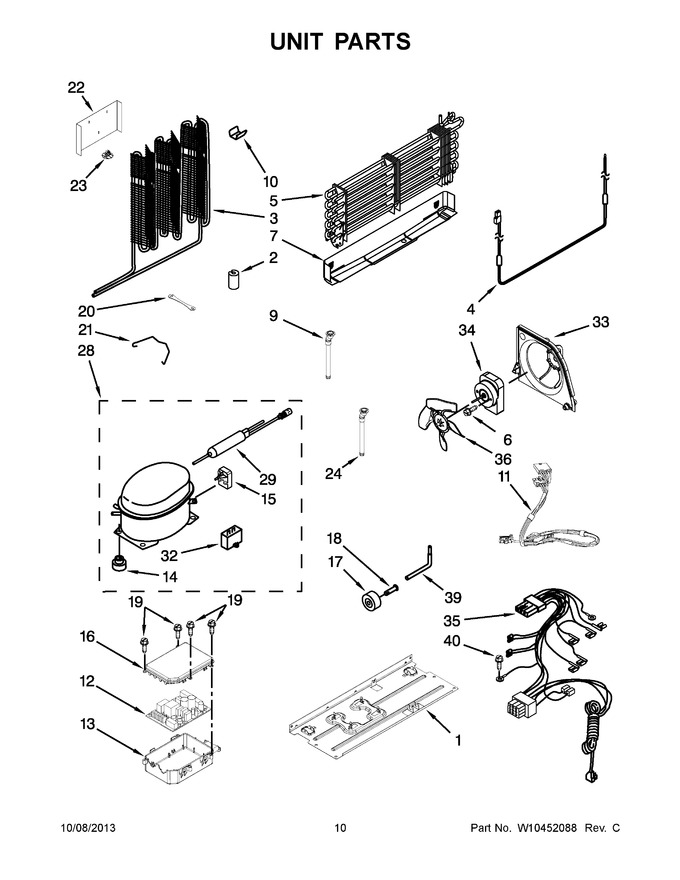

06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Plate, Unit Mounting |
|
$ 140.83 | |||||
| 2 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 6.93 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
Immediately | $ 238.46 | ||||
| 4 | WPW10436849 | Heater, Defrost (Replaces: W10436849) |
|
Immediately | $ 120.73 | ||||
| 5 | WPW10321158 | Evaporator Assembly (Replaces: W10321158) |
|
Immediately | $ 264.29 | ||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | W10890667 | Tray, Evaporator (Replaces: W10314200) |
|
$ 130.24 | |||||
| 9 | W11190084 | Drain Tube (Replaces: W10314199) |
|
Immediately | $ 56.20 | ||||
| 10 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 16.61 | |||||
| 11 | WPW10424230 | Wire Assembly, Low Voltage (Replaces: W10424230) |
|
Immediately | $ 105.97 | ||||
| 12 | W11034366 | Electronic Control Minotaur (Replaces: W10336511) |
|
Immediately | $ 337.40 | ||||
| 13 | 2323186 | Enclosure, Electronic Control (Replaces: W10370696) |
|
$ 92.12 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 6.47 | ||||
| 15 | WPW10194431 | Start Device, Combination (start Relay And Overload) (Replaces: W10194431) |
|
Immediately | $ 78.17 | ||||
| 16 | W10313215 | Cover, Electronic Control |
|
$ 66.85 | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 19 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 17.84 | ||||
| 21 | W10204187 | Strap, Bale |
|
- | |||||
| 22 | W10349514 | Cover, Condenser Bottom |
|
$ 70.63 | |||||
| 23 | W10296661 | Clip, Bottom Cover |
|
$ 15.24 | |||||
| 24 | W11190084 | Valve, Drain (Replaces: W10316650) |
|
Immediately | $ 56.20 | ||||
| 28 | WPW10466675 | Compressor (also Order 876765 Tube Kit) (Replaces: W10391109) |
|
$ 715.31 | |||||
| 29 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 32 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 33 | WP2315541 | Baffle, Air (Replaces: 2315541) |
|
Immediately | $ 75.42 | ||||
| 34 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 102.56 | ||||
| 35 | W10390445 | Wire Assembly, Unit |
|
$ 178.34 | |||||
| 36 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 85.56 | |||||
| 39 | 2154109 | Tube, Process |
|
$ 65.37 | |||||
| 40 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 115.28 | ||||
| NI | N/P | Refrigerant Charge 5.5 Oz. (r-134a) |
|
- | |||||
| NI | 978030 | Valve, Access |
|
$ 117.64 | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 82.22 |
