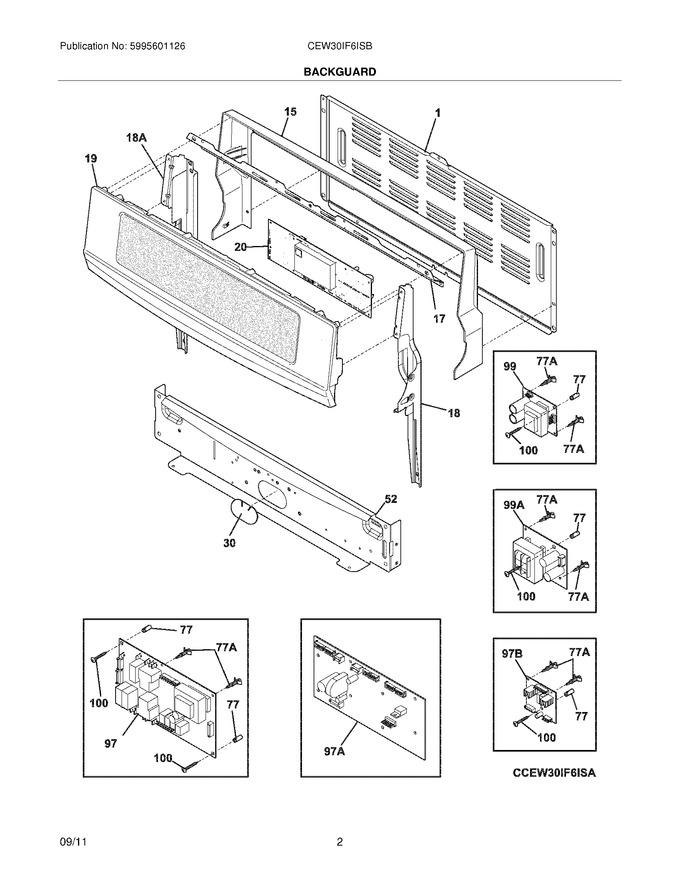

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316500100		Shield,rear Wall		Appelez-nous	-
15	316500401		Wrapper,backguard ,black				$ 148.94
17	316500301		Shield,upper ,backguard		Appelez-nous	-
18	316526000		Channel,support ,rh ,backguard		Appelez-nous	-
30	316287000		Plug,oval ,harness				$ 19.22
52	316509805		Shield,backguard ,black ,inner		Appelez-nous	-
77	316247900		Spacer,power Board				$ 44.65
100	5303289910		Screw,8a ,1``				$ 5.67
18A	316526001		Channel,support ,lh ,backguard		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
F19	316538420		Control Panel Assembly,user Interface ,w/ss Trim				$ 2,717.78
F20	316576644		Clock/timer,electronic ,es630a				$ 349.89
F97	316443920		Board,relay ,oven Control			Immediately	$ 403.75
F97A	316576414		Board,power ,uib				$ 366.02
F97B	316519200		Board,variable Speed			Immediately	$ 256.24
F99	316535200		Board,power Supply ,8v ,(2)				$ 408.36
F99A	316435705		Board,power Supply				$ 396.55
FNI	316525641		Harness,wiring ,uib ,to Filter Board				$ 83.21
FNI	316525640		Harness,wiring ,backguard				$ 109.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316533900		Screw,truss Hd ,8-16 X 1.5 ,(10)				$ 12.02
NI	316304600		Plate,mounting ,power Board		Appelez-nous	-
NI	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
NI	316457000		Retainer,wire ,p-lock ,stick On		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
