SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body

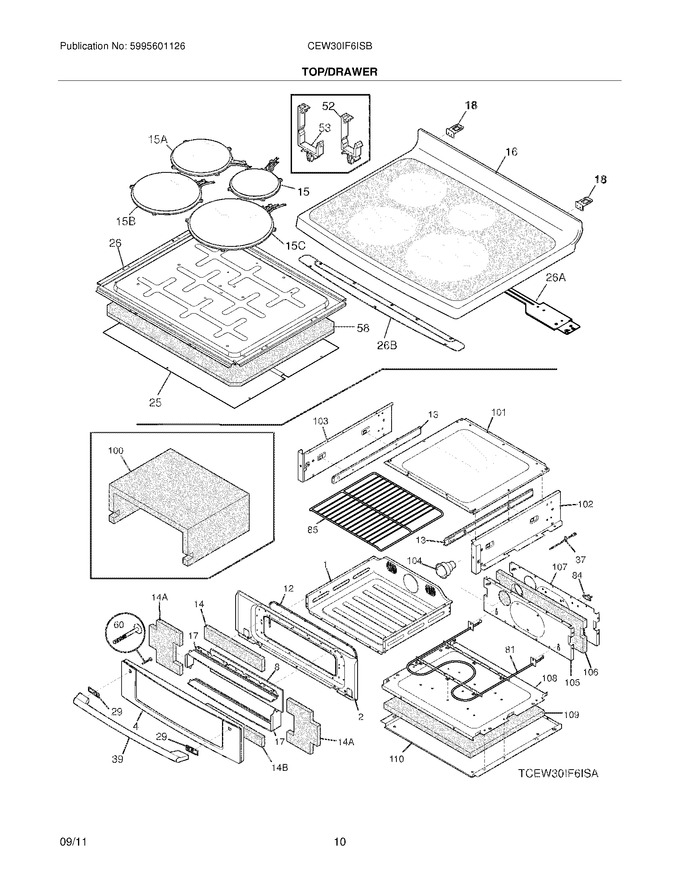

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316414106		Drawer,mini Oven ,cobalt		Appelez-nous	-
2	316510201		Liner,drawer ,cobalt ,mini Oven				$ 60.96
4	316538206		Panel Assembly,drawer Glass ,outer ,w/trim & Tape				$ 285.60
8	316431901		Glass,inner Door ,mini Oven				$ 52.36
12	316410700		Seal,door ,mini Oven				$ 50.35
13	316449801		Glide,drawer ,mini Oven ,(2)				$ 129.51
14	316414202		Insulation,door Top ,mini Oven				$ 12.08
16	316470642		Main Top Assembly,glass/steel ,black				$ 311.58
17	316508101		Spacer,glass ,(2)				$ 30.66
18	316580800		Bracket-hinge,main Top			Immediately	$ 9.86
25	316301300		Shield,heat ,induction		Appelez-nous	-
26	316301001		Panel,mounting ,induction Coils		Appelez-nous	-
29	316505401		Spacer,handle ,gray ,(2)				$ 18.17
39	241881301		Handle,door ,stainless				$ 170.06
52	316301200		Clip,wiring ,natural ,(2) ,induction		Appelez-nous	-
53	316303400		Clip,wiring ,black ,(3)		Appelez-nous	-
58	316301400		Insualtion,induction		Appelez-nous	-
60	5304507924		Screw,handle Mtg ,10-24 X 2.188 ,(2)   (Replaces: 316513301)			Immediately	$ 16.48
85	316411000		Rack,mini Oven				$ 67.15
100	316410900		Insulation,wrapper ,mini Oven		Appelez-nous	-
101	316410201		Panel,top ,mini Oven		Appelez-nous	-
102	316431201		Panel,oven Side ,rh ,mini Oven		Appelez-nous	-
103	316431203		Panel,oven Side ,lh ,mini Oven		Appelez-nous	-
104	316431501		Light Assembly,mini Oven				$ 61.36
105	316431303		Panel,main Back ,mini Oven		Appelez-nous	-
106	316431400		Insualtion,oven Back ,mini Oven		Appelez-nous	-
107	316431307		Shield,main Back ,mini Oven		Appelez-nous	-
108	316410101		Panel,bottom ,mini Oven		Appelez-nous	-
109	316410800		Insulation,floor ,mini Oven		Appelez-nous	-
110	316410400		Shield,floor ,mini Oven		Appelez-nous	-
14A	316414201		Insulation,door Sides ,mini Oven ,(2)				$ 12.08
14B	316414203		Insulation,door Bottom ,mini Oven				$ 12.02
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316501501		Bracket,chassis Support ,front				$ 15.33
F15	316300600		Element Assembly,induction ,6`` ,top Surface,w/wiring				$ 315.68
F15A	316300700		Element Assembly,induction Coil ,180 Mm				$ 354.69
F15B	316300800		Element Assembly,induction ,8`` ,top Surface,w/wiring				$ 342.04
F15C	316300900		Element Assembly,induction ,10`` ,top Surface,w/wiring				$ 351.28
F37	316490001		Probe,oven Temp ,mini Oven			Immediately	$ 68.80
F81	316413902		Element,bake ,mini Oven				$ 166.09
F84	316440900		Thermostat,safety ,mini Oven				$ 46.26
FNI	316525630		Harness-wiring,aux. Mini Oven				$ 34.18
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316301100		Screw,shoulder ,mounting ,(9) ,induction Coil		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
