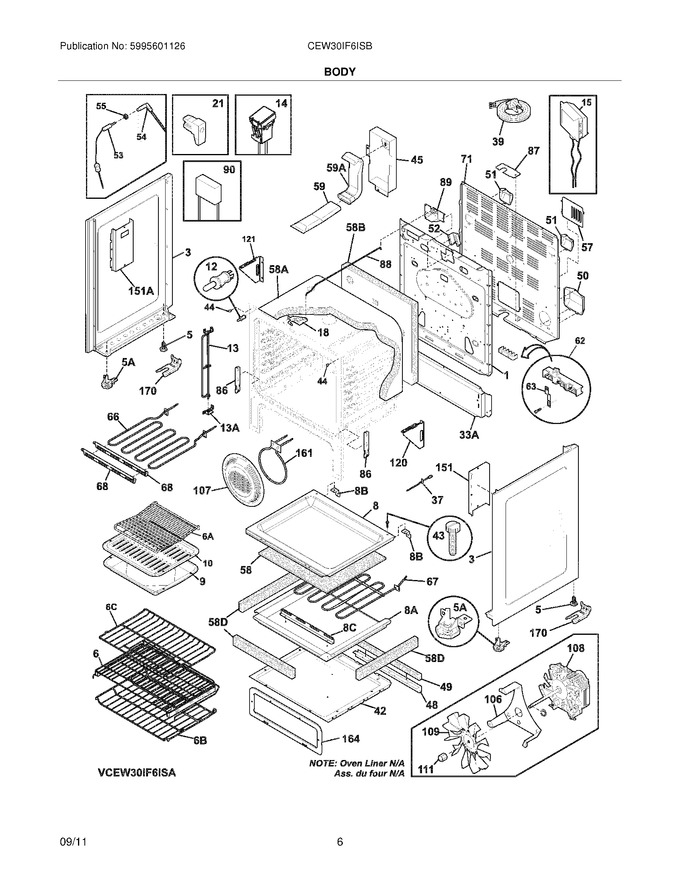

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316502004		Back,main		Appelez-nous	-
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 133.93
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 134.69
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316571800		Rack Assembly,w/glides				$ 290.93
8	316505602		Panel,cobalt ,oven Bottom				$ 158.06
9	316081901		Pan,broiler ,cobalt Blue				$ 74.32
10	316082001		Insert,broiler Pan ,cobalt Blue				$ 53.09
13	316528904		Lever Assembly,rack Sensing				$ 98.70
21	316408000		Clip,bodyside				$ 18.20
42	316407700		Shield,wool ,lower				$ 131.19
43	316282700		Screw,w/washer ,8-18				$ 9.93
44	316517600		Spacer,oven Door				$ 12.05
45	316509900		Shield,vent Tube		Appelez-nous	-
48	316301600		Shield,lower		Appelez-nous	-
49	316301700		Insulation,lower Shield		Appelez-nous	-
50	316302600		Cover,air Inlet				$ 33.18
51	316302700		Cover,air Outlet		Appelez-nous	-
52	316302000		Bracket,wiring ,crosover ,induction		Appelez-nous	-
55	316247700		Nut,mounting				$ 18.20
57	316457801		Cover,access				$ 12.89
58	316509500		Insulation,bake Element				$ 45.09
59	316208402		Vent Tube,assembly ,w/catalyst				$ 38.27
62	5303935061		Terminal Block Kit		Appelez-nous	-
63	316542600		Plate,grounding Strap		Appelez-nous	-
68	316506401		Support,broil Element ,(2)		Appelez-nous	-
71	316302501		Sheild,rear Wall		Appelez-nous	-
86	316580700		Receptacle,hinge ,(2)			Immediately	$ 30.47
87	316081202		Bracket,cable Mtg				$ 4.96
88	316203500		Rod,auto Latch				$ 72.30
106	316404100		Bracket,motor Mtg.				$ 63.70
107	316026702		Cover,fan				$ 67.94
108	316256100		Motor-fan			Immediately	$ 211.18
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
120	316279204		Bracket,stiffener ,rh		Appelez-nous	-
121	316279205		Bracket,stiffener ,lh		Appelez-nous	-
151	316404600		Shield,bodyside				$ 49.30
164	316410302		Trim,front ,cobalt ,mini Oven				$ 39.53
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
13A	316543000		Bracket,lever ,lower ,rack Sensing				$ 20.80
33A	316402100		Shield,rear Wall ,lower				$ 47.30
58A	316406604		Insulation,oven Wrapper   (Replaces: 316406601)			Immediately	$ 69.77
58B	316301500		Insualtion,oven Back		Appelez-nous	-
58D	316509700		Insulation,oven Bottom				$ 60.25
59A	316510000		Vent Tube,oven ,upper				$ 41.53
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
6A	318219500		Rack,broiler Pan		Appelez-nous	-
6B	316496205		Rack,oven				$ 134.67
6C	316496201		Rack,oven   (Replaces: 316496207)			Immediately	$ 103.48
8A	316505701		Base,bake Element				$ 244.44
8B	316506000		Bracket,support ,oven Bottom ,(2)				$ 4.55
8C	316505801		Support,element				$ 25.48
F12	316445500		Switch,oven Light ,door Frame			Immediately	$ 54.74
F14	316508301		Switch Assembly,rack Sensing				$ 207.03
F15	316510701		Lamp,oven ,(2) ,halogen				$ 157.97
F151	316404601		Shield,bodyside				$ 21.27
F161	316211603		Element,convection Fan ,350 W				$ 255.86
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F170	316541700		Template,anti-tip		Appelez-nous	-
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490000		Probe,oven Temp			Immediately	$ 58.30
F39	318113111		Cord,electric				$ 95.55
F53	5304503737		Probe,meat Temp   (Replaces: 318601304)				$ 99.33
F54	316536902		Receptacle,probe				$ 143.59
F66	5304511881		Element,broil   (Replaces: 316506300)			Immediately	$ 81.14
F67	316301800		Element,hidden Bake				$ 238.93
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
F90	316539900		Filter,noise ,lock Motor ,suppressor				$ 68.61
FNI	316580257		Harness,wiring ,main				$ 179.60
NI	316418901		Screw,trilobe ,10-32 X 5/16`` ,black				$ 14.18
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	3131737		Washer-black				$ 5.59
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303289910		Screw,8a ,1``				$ 5.67
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316279600		Screw,bracket ,stiffener ,(4)				$ 12.05
NI	316534100		Washer,flat ,meat Probe				$ 14.89
