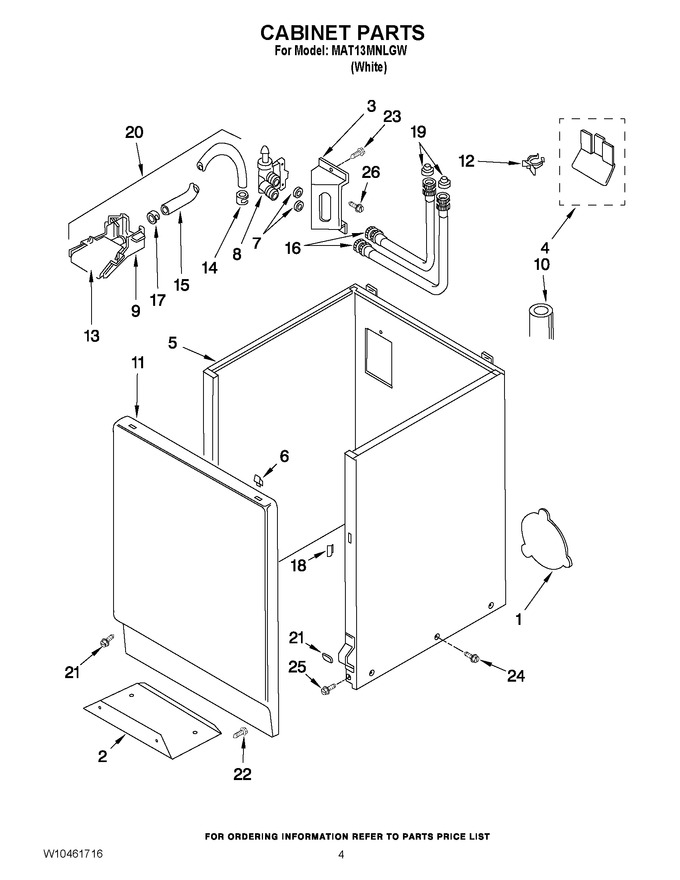

03 - Cabinet Parts
04 - Tub Parts
05 - Transmission Parts
06 - Clutch And Brake Parts
07 - Base Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 211878 | Plate, Access |
|
- | |||||
| 1 | 22002924 | Plate, Cover (w/hole) |
|
- | |||||
| 1 | WP90767 | Screw (Replaces: 211294) |
|
Immediately | $ 7.04 | ||||
| 2 | 22001624 | Guard, Belt |
|
- | |||||
| 3 | 22002361 | Bracket, Valve |
|
- | |||||
| 4 | 22001972 | Clip, Cabinet |
|
- | |||||
| 5 | 22001302 | Cabinet (wht) |
|
- | |||||
| 6 | WP22001650 | Fastener, Spring (Replaces: 22001650) |
|
Immediately | $ 7.34 | ||||
| 7 | Y013783 | Gasket, Inlet Hose |
|
$ 18.72 | |||||
| 8 | W10136963 | Valve, Water |
|
- | |||||
| 9 | 22001187 | Injector (upr) |
|
$ 35.13 | |||||
| 10 | WP22003410 | Hose, Drain (Replaces: 22003410) |
|
Immediately | $ 47.69 | ||||
| 11 | 22001803 | Panel, Front (wht) |
|
- | |||||
| 12 | 22002151 | Clip, Hose |
|
- | |||||
| 13 | WP22001186 | Injector (lwr) (Replaces: 22001186) |
|
Immediately | $ 75.68 | ||||
| 14 | WP596669 | Clamp,hose-injec.hose To Valve (Replaces: 216169) |
|
Immediately | $ 7.56 | ||||
| 15 | 22001190 | Hose, Injector |
|
- | |||||
| 16 | 35-3401 | Inlet Hose Assy (hot) |
|
- | |||||
| 16 | 35-3400 | Inlet Hose Assy (cold) |
|
- | |||||
| 17 | WP489503 | Clamp, Hose (Replaces: 216170) |
|
Immediately | $ 9.68 | ||||
| 18 | 214376 | Spacer, Front Panel |
|
- | |||||
| 19 | 22002960 | Strainer, Washer Inlet |
|
$ 5.70 | |||||
| 20 | WP22001304 | Injector Assy., Water (Replaces: 22001304) |
|
Immediately | $ 59.06 | ||||
| 21 | 22001496 | Screw, Torx |
|
$ 5.38 | |||||
| 22 | WP90767 | Screw (Replaces: 211294) |
|
Immediately | $ 7.04 | ||||
| 23 | WP489128 | Screw, Serrated Washer Head Hx (Replaces: 22003817) |
|
$ 9.79 | |||||
| 24 | 213007 | Screw, Cabinet |
|
$ 10.99 | |||||
| 25 | WPW10346892 | Screw (Replaces: 213121) |
|
Immediately | $ 6.47 | ||||
| 25 | WP27001200 | Screw, Cbnt To Frnt Of Base (Replaces: 213122) |
|
$ 6.91 | |||||
| 26 | 313561 | Screw |
|
- |
