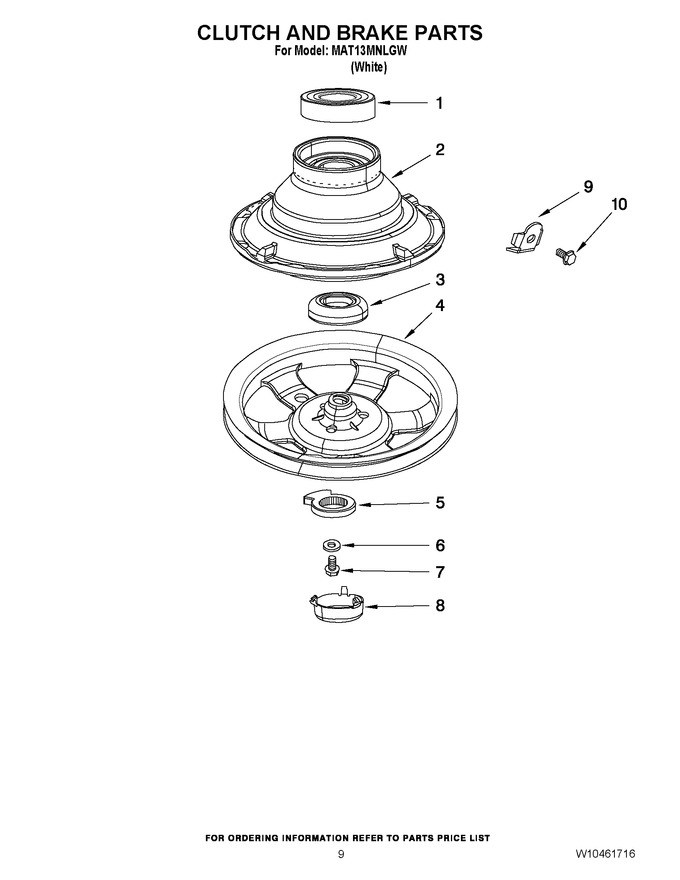

06 - Clutch And Brake Parts
07 - Base Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y200720 | Ball Bearing, Radial----s |
|
- | |||||
| 2 | 201190 | Brake Assembly |
|
- | |||||
| 3 | 200835 | Bearing, Brake Rotor |
|
$ 30.47 | |||||
| 4 | WP6-2301530 | Pulley (Replaces: 22002429) |
|
$ 178.73 | |||||
| 5 | WP211089 | Lug, Stop (Replaces: 211089) |
|
$ 10.16 | |||||
| 6 | WP22003555 | Washer, Lock (Replaces: 211090) |
|
$ 19.26 | |||||
| 7 | WP912618 | Screw,stop Lug(center Shaft) (Replaces: 211375) |
|
$ 6.98 | |||||
| 8 | 22002428 | Cover, Dust (plastic) |
|
$ 22.21 | |||||
| 9 | 213325 | Clip, Retainer |
|
$ 5.51 | |||||
| 10 | 213326 | Screw, Retaining Clip |
|
- |
