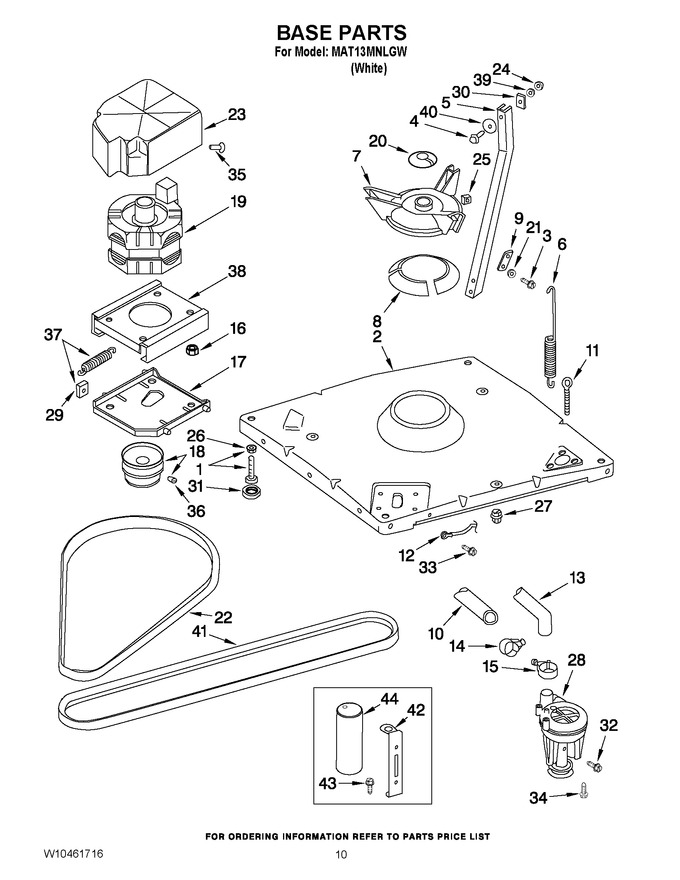

07 - Base Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003428 | Leg, Adjustable (w/nut) |
|
Immediately | $ 14.41 | ||||
| 2 | 22002150 | Base (w/damper Pads) |
|
- | |||||
| 3 | Y015627 | Screw, Hex Hd Cap 5/16 X 5/8 |
|
$ 8.15 | |||||
| 4 | W10175938 | Bolt & Gasket Assembly (long) (Replaces: 205254) |
|
Immediately | $ 7.00 | ||||
| 4 | W10175939 | Bolt & Gasket Assembly (short) (Replaces: 200744) |
|
$ 7.79 | |||||
| 5 | 213100 | Brace, Tub |
|
- | |||||
| 6 | 22001300 | Spring, Centering |
|
$ 5.83 | |||||
| 7 | 1N4004 | Damper W/bolt & Clip (Replaces: 203725) |
|
- | |||||
| 8 | 203956 | Damper Pad Kit (w/poly Lube) |
|
Immediately | $ 47.33 | ||||
| 9 | 213073 | Washer, Double |
|
- | |||||
| 10 | WP22003410 | Hose, Drain (Replaces: 22003410) |
|
Immediately | $ 47.69 | ||||
| 11 | W11129403 | Bolt, Eye/centering Spring (Replaces: 216416) |
|
$ 12.23 | |||||
| 12 | 901220 | Wire, Ground |
|
- | |||||
| 13 | WP213045 | Drain Hose-tub Tub To Pump (Replaces: 213045) |
|
Immediately | $ 43.57 | ||||
| 14 | WP285655 | Clamp, Hose (Replaces: Y22001820) |
|
Immediately | $ 7.55 | ||||
| 15 | WP285655 | Clamp, Hose (Replaces: 22001640) |
|
Immediately | $ 7.55 | ||||
| 16 | WP3400029 | Nut, Washered Lock (Replaces: Y311426) |
|
Immediately | $ 6.98 | ||||
| 17 | 22001301 | Mount, Motor Lower-assembly |
|
- | |||||
| 18 | Y202496 | Pulley, Motor (w/set Screw) |
|
- | |||||
| 19 | 12002351 | Motor (one Speed) (Replaces: 201805) |
|
Immediately | $ 170.98 | ||||
| 20 | 22001511 | Deflector, Water (w/adhesive) |
|
- | |||||
| 21 | 911852 | Washer, Lock (brace) |
|
- | |||||
| 22 | 12112425 | V Belt,drive Pulley (Replaces: 211125) |
|
Immediately | $ 45.06 | ||||
| 23 | 215098 | Shield, Motor |
|
- | |||||
| 24 | Y052734 | Nut |
|
- | |||||
| 25 | Y052785 | Nut,brace To Damper |
|
- | |||||
| 26 | WP210385 | Nut, Lock (Replaces: 210385) |
|
$ 6.26 | |||||
| 27 | WP211949 | Nut, Eyebolt (Replaces: 211949) |
|
$ 6.88 | |||||
| 28 | 202203 | Pump As Pak |
|
- | |||||
| 29 | 205000 | Glide Kit (4 W/poly Lube) (Replaces: Y204998) |
|
$ 62.00 | |||||
| 30 | 212979 | Washer, Tub Brace |
|
$ 91.61 | |||||
| 31 | WP210684 | Foot, Rubber (Replaces: 210684) |
|
Immediately | $ 14.09 | ||||
| 32 | WP3390631 | Screw, Bearing Insert (Replaces: Y015408) |
|
$ 7.04 | |||||
| 33 | WP489128 | Screw, Ground Wire To Base (Replaces: 210186) |
|
$ 9.79 | |||||
| 34 | WPY014874 | Screw, Hex Hd No.10 X 1/2 Inc (Replaces: 211880) |
|
$ 6.98 | |||||
| 35 | WPW10346892 | Screw (Replaces: 213121) |
|
Immediately | $ 6.47 | ||||
| 36 | Y053241 | Set Screw, Pulley |
|
- | |||||
| 37 | 205000 | Glide & Spring Kit |
|
$ 62.00 | |||||
| 38 | 214956 | Mount, Motor/upper |
|
- | |||||
| 39 | Y054867 | Washer, Lock |
|
- | |||||
| 40 | 211100 | Washer, Cushion |
|
- | |||||
| 41 | WP211451 | V Belt, Pump (Replaces: 211451) |
|
$ 93.19 | |||||
| 42 | 211149 | Clip, Capacitor |
|
$ 6.23 | |||||
| 43 | WP90767 | Screw, Clip (Replaces: 211294) |
|
Immediately | $ 7.04 | ||||
| 44 | 201101 | Capacitor |
|
- |
