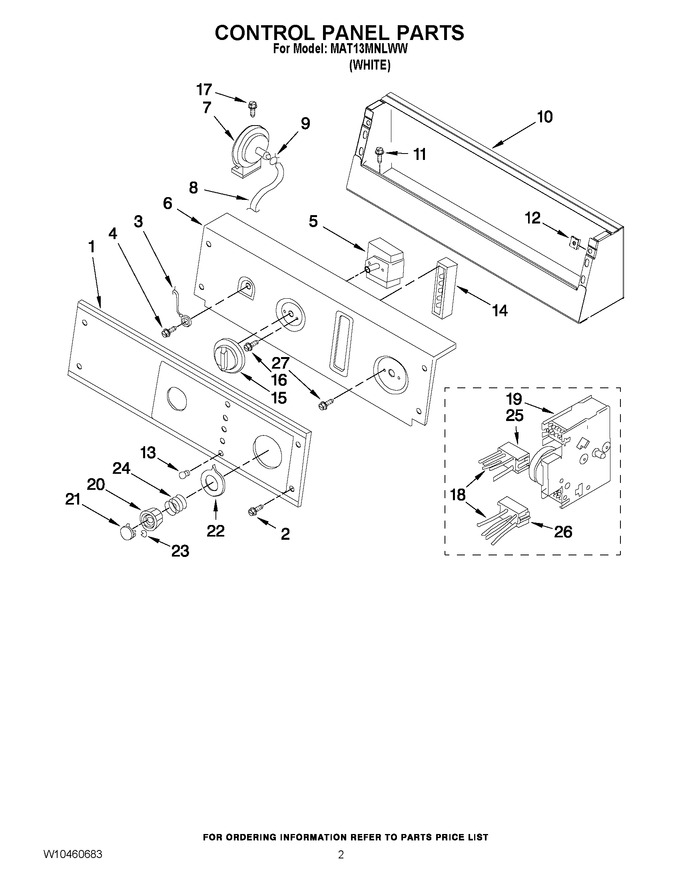

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10136961		Control Panel W/lens - Mnl		Appelez-nous	-
2	WPW10131119		Screw, Torx   (Replaces: 215506)				$ 6.26
3	22001959		Wire, Ground		Appelez-nous	-
4	WP489128		Screw, Serrated Washer Head Hx   (Replaces: 22003817)				$ 9.79
5	COMM PART		Switch, Temp.   (Replaces: 205353)		Appelez-nous	-
6	W10136967		Bracket, Back (wht)		Appelez-nous	-
7	W10136964		Switch, Pressure- Mnl		Appelez-nous	-
8	WP22001619		Tube, Air   (Replaces: 22001619)				$ 75.73
9	WP596669		Clamp,water Level Swtch Tube   (Replaces: 410296)			Immediately	$ 7.56
10	W10136402		Console (wht)		Appelez-nous	-
11	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
11	WP90767		Screw   (Replaces: Y313559)			Immediately	$ 7.04
12	215003		Fastener		Appelez-nous	-
13	WP215564		Lens, Indicator (amber)   (Replaces: 215564)			Immediately	$ 7.14
14	206881		Indicator, 5 Light 115v				$ 96.51
15	206894		Knob W/bump		Appelez-nous	-
16	WP488234		Screw   (Replaces: Y313588)				$ 6.07
17	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
18	22004394		Harness, Wire (series 11)		Appelez-nous	-
18	22002257		Wire Harness Kit- (series 10)		Appelez-nous	-
19	22001082		Timer				$ 202.15
20	206892		Control Knob				$ 9.04
21	WPW10133501		Cap For Timer   (Replaces: 314723)				$ 54.76
22	22001571		Knob				$ 33.62
23	211605		Bezel, Timer Dial (blk)		Appelez-nous	-
24	211065		Spring, Timer Knob				$ 5.70
25	22001885		Housing, Connector (rt)----n		Appelez-nous	-
25	N/P		Retainer, Timer Knob		Appelez-nous	-
26	22001886		Housing, Connector (lt)		Appelez-nous	-
27	216412		Screw		Appelez-nous	-
