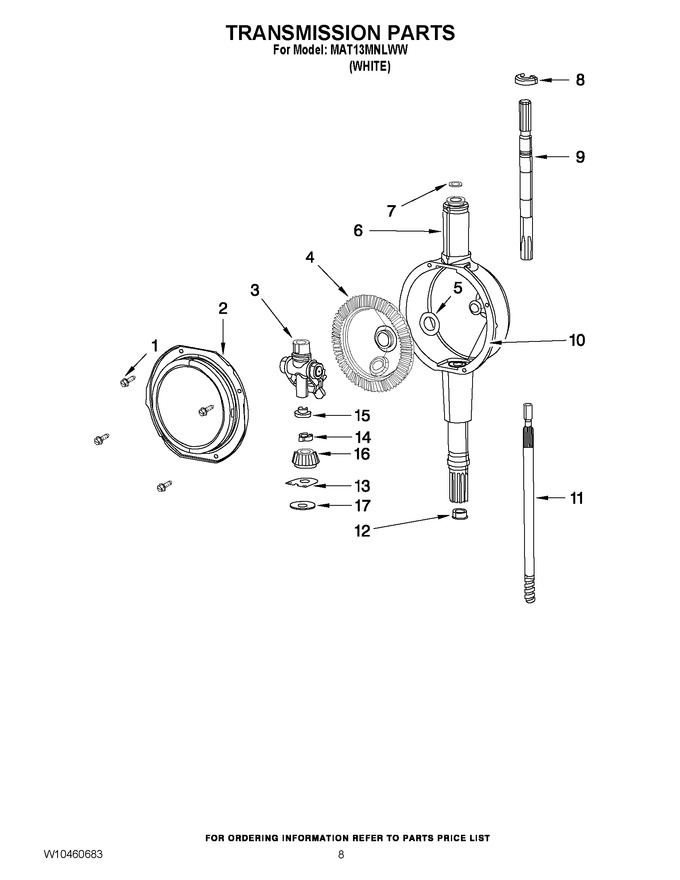

05 - Transmission Parts
06 - Clutch And Brake Parts
07 - Base Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215417 | Screw, Transmission Cover |
|
- | |||||
| 2 | 206628 | Cover, Transmission |
|
- | |||||
| 3 | 206685 | Block, Torque,& Yoke Assembly |
|
- | |||||
| 4 | 206713 | Gear, Bevel |
|
- | |||||
| 5 | 215394 | Washer, Bevel Gear |
|
- | |||||
| 6 | 22002537 | Housing, Transmission (shw) |
|
- | |||||
| 7 | WP22002417 | O-ring Agitator Shaft (Replaces: 22002417) |
|
$ 6.47 | |||||
| 8 | WP22002340 | Collar, Agitator Shaft (Replaces: 22002340) |
|
Immediately | $ 7.36 | ||||
| 9 | 22002415 | Shaft, Agitator |
|
- | |||||
| 10 | W10841140 | Silastic,adh.sealant (Replaces: Y058700) |
|
Immediately | $ 24.92 | ||||
| 11 | 22002342 | Shaft, Center (deep Tub) |
|
- | |||||
| 12 | 207843 | Lip Seal Repair Kit |
|
$ 11.59 | |||||
| 13 | WP215395 | Plate, Clutch (Replaces: 215395) |
|
Immediately | $ 6.79 | ||||
| 14 | 22002353 | Collar, Center Shaft |
|
$ 5.84 | |||||
| 15 | 22002341 | Collar, Lower Plastic Keeper |
|
$ 5.65 | |||||
| 16 | WPW10221114 | Pinion (Replaces: 215401) |
|
$ 58.63 | |||||
| 17 | WP6-2114830 | Washer, Splined Trans (deep Tub, Complete) (Replaces: 211483) |
|
$ 7.05 |
