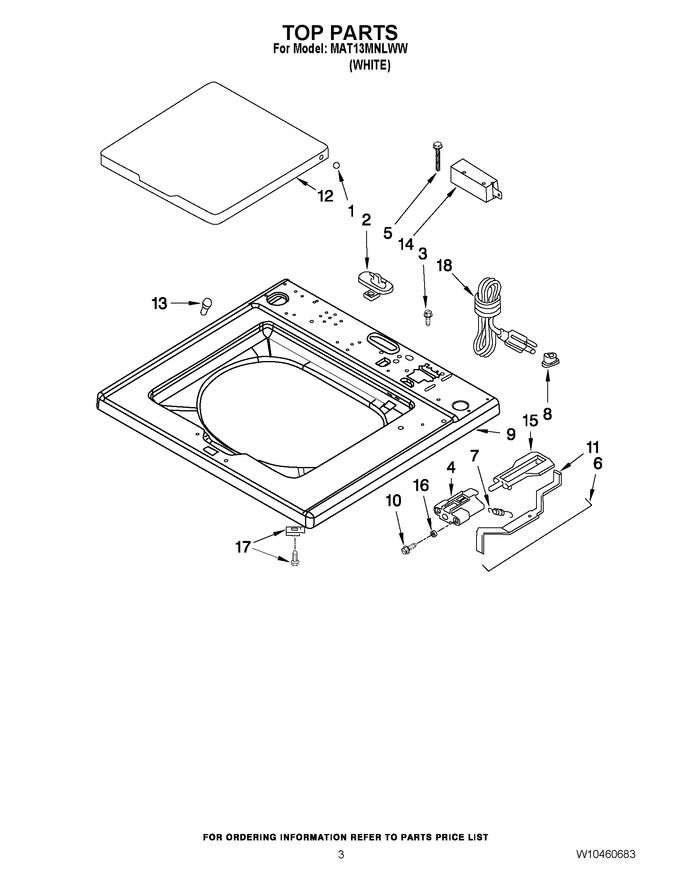

02 - Top Parts
03 - Cabinet Parts
04 - Tub Parts
05 - Transmission Parts
06 - Clutch And Brake Parts
07 - Base Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP211726 | Hinge, Ball (Replaces: 211726) |
|
Immediately | $ 7.18 | ||||
| 2 | 22001298 | Cap, Top Cover |
|
- | |||||
| 3 | W11233072 | Screw (Replaces: 207159) |
|
Immediately | $ 12.62 | ||||
| 3 | WP489128 | Screw, Ground Wire To Base (Replaces: 210186) |
|
$ 9.79 | |||||
| 4 | 22002135 | Bracket, Unbalance |
|
$ 22.51 | |||||
| 5 | 213501 | Screw, 6-20 X 1 1/8 |
|
$ 12.03 | |||||
| 6 | 22001969 | Unbalance Lever Assembly |
|
$ 22.12 | |||||
| 7 | WP213720 | Spring (Replaces: 213720) |
|
$ 7.63 | |||||
| 8 | 211881 | Grommet, Cord |
|
- | |||||
| 9 | 22002137 | Cover Assy., Top (wht-pr) |
|
- | |||||
| 10 | W10756178 | Screw (Replaces: 910182) |
|
$ 5.39 | |||||
| 11 | 22001672 | Lever, Unbalance |
|
- | |||||
| 12 | 22001893 | Lid (wht W/legend) |
|
$ 154.52 | |||||
| 13 | WP212716 | Bumper, Lid (Replaces: 212716) |
|
Immediately | $ 7.88 | ||||
| 14 | WP22004243 | Switch, Lid (Replaces: 22004243) |
|
$ 105.09 | |||||
| 15 | 216255 | Plunger, Unbalance |
|
$ 5.84 | |||||
| 16 | 211500 | Washer, Bracket To Top Cover |
|
- | |||||
| 17 | 204445 | Screw & Fastener Assembly |
|
- | |||||
| 18 | WP22003062 | Cord, Power (as Wrap) (Replaces: 22003027) |
|
$ 121.96 |
