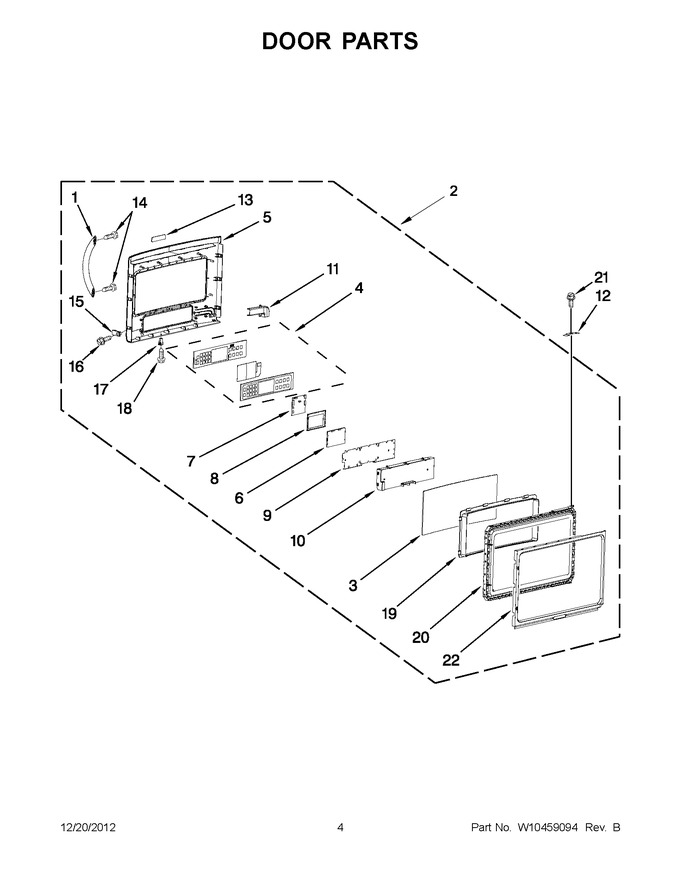

02 - Door Parts
03 - Ventilation Parts
04 - Interior & Airflow Parts
05 - Rack And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8206504 | Handle (stainless) |
|
$ 263.39 | |||||
| 2 | W10282802 | Door, Complete (stainless) |
|
$ 641.70 | |||||
| 3 | WP8206528 | Outer Door Glass (Replaces: 8206528) |
|
$ 167.45 | |||||
| 4 | 8206635 | Control Panel |
|
$ 220.84 | |||||
| 5 | W10245711 | Outer Door Frame (stainless) |
|
$ 220.21 | |||||
| 6 | W10116269 | Lcd Frame |
|
$ 41.55 | |||||
| 7 | W10282797 | Board, User (interface) |
|
- | |||||
| 8 | W10143962 | Lcd Module |
|
$ 199.49 | |||||
| 9 | 8206511 | Plate, Control Panel |
|
$ 43.06 | |||||
| 10 | 8206512 | Cover, Control Panel |
|
$ 36.00 | |||||
| 11 | 8206527 | Cable Cover, Door |
|
$ 55.23 | |||||
| 12 | W10143965 | Clip, Hinge Screw ( Not Included With Door Assembly ) |
|
$ 8.34 | |||||
| 13 | 8206517 | Logo (stainless) |
|
- | |||||
| 14 | 8206513 | Screw M4 X 16 |
|
- | |||||
| 15 | 8206525 | Spacer, Side (stainless) |
|
$ 6.26 | |||||
| 16 | 8206215 | Screw M4 X 12 |
|
- | |||||
| 17 | 8206178 | Spacer, Bottom |
|
$ 7.05 | |||||
| 18 | 8206179 | Screw M4 X 20 |
|
$ 5.58 | |||||
| 19 | W10282799 | Cover, Choke |
|
$ 77.84 | |||||
| 20 | W10112215 | Door, Plate Assembly |
|
$ 293.27 | |||||
| 21 | W10565483 | Hinge Screw ( Not Included With Door Assembly ) (Replaces: W10143963) |
|
$ 11.95 | |||||
| 22 | W10143964 | Frame, Inner Door |
|
$ 91.68 |
