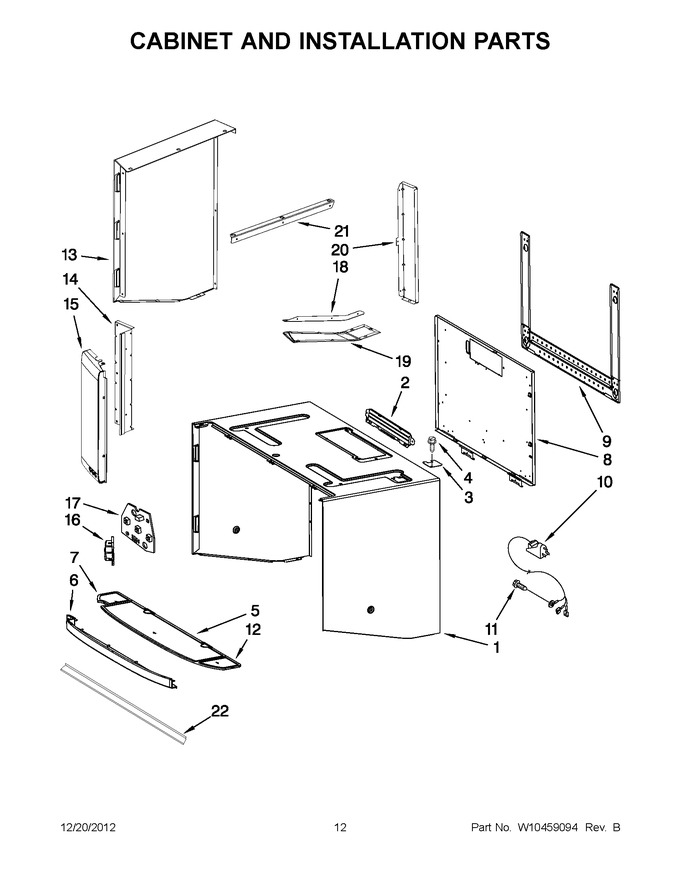

01 - Control Board Parts
02 - Door Parts
03 - Ventilation Parts
04 - Interior & Airflow Parts
05 - Rack And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10282545 | Case, Outer (stainless) |
|
- | |||||
| 2 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 3 | 8184897 | Cover, Power Cord |
|
- | |||||
| 4 | 4393472 | Screw |
|
- | |||||
| 5 | 8206475 | Vent Screen, Top Center |
|
$ 195.44 | |||||
| 6 | W10116263 | Support, Vent Screen (stainless) |
|
$ 37.74 | |||||
| 7 | 8206207 | Vent Screen Left Side |
|
$ 97.78 | |||||
| 8 | 8206051 | Plate, Back Hardware |
|
$ 51.26 | |||||
| 9 | 8206319 | Plate, Mounting |
|
- | |||||
| 10 | W10282546 | Cord, Power |
|
- | |||||
| 11 | 4393836 | Screw |
|
- | |||||
| 12 | 8206206 | Vent Screen Right Side |
|
$ 173.30 | |||||
| 13 | W10143975 | Panel, Side (stainless, Left) |
|
- | |||||
| 13 | W10143993 | Panel, Side (stainless, Right) |
|
- | |||||
| 14 | W10143976 | Support, Side Panel |
|
- | |||||
| 15 | W10282803 | Panel, Front (stainless, Left) |
|
$ 122.36 | |||||
| 15 | W10245718 | Panel, Front (stainless, Right) |
|
$ 107.04 | |||||
| 16 | W10143982 | Button (stainless) |
|
- | |||||
| 17 | W10143983 | Hood/light Switch Board |
|
- | |||||
| 18 | W10143984 | Bracket (lower Left) |
|
- | |||||
| 18 | W10143990 | Bracket (lower Right) |
|
- | |||||
| 19 | W10143989 | Plate (co.) (right Side) |
|
- | |||||
| 19 | W10143985 | Plate (co.) (left Side) |
|
- | |||||
| 20 | W10143994 | Plate, Back (right) |
|
- | |||||
| 20 | W10143996 | Plate, Back (left) |
|
- | |||||
| 21 | W10143997 | Bracket, Upper (left) |
|
- | |||||
| 21 | W10143995 | Bracket, Upper (right) |
|
- | |||||
| 22 | 8205980 | Deflector, Air |
|
$ 85.38 | |||||
| NI | W10112290 | Miscellaneous, Harness, Communication Pcba |
|
- | |||||
| NI | W10113777 | Miscellaneous, Harness, Inverter |
|
- | |||||
| NI | W10470173 | Miscellaneous, Harness, Control (Replaces: 8206189) |
|
$ 16.76 | |||||
| NI | W10470175 | Miscellaneous, Harness, Hood Light (Replaces: W10113778) |
|
$ 14.30 | |||||
| NI | W10113779 | Miscellaneous, Harness, User Interface Ribbon Cable |
|
- | |||||
| NI | W10470191 | Miscellaneous, Harness, Membrane To User Interface (Replaces: 8206468) |
|
$ 130.68 | |||||
| NI | W10517169 | Miscellaneous, Template, Back Wall |
|
- | |||||
| NI | W10570206 | Miscellaneous, Harns-wire, Cooktop Lights (Replaces: W10143999) |
|
- | |||||
| NI | W10113780 | Miscellaneous, Harness, User Interface Ribbon Cable |
|
- | |||||
| NI | W10128803 | Miscellaneous, Installation, Hardware |
|
$ 8.00 | |||||
| NI | 8205274 | Miscellaneous, Template, Upper |
|
- | |||||
| NI | W10113776 | Miscellaneous, Harness, Hood Fan |
|
- | |||||
| NI | W10253657 | Miscellaneous, Main Harness |
|
- | |||||
| NI | W10244770 | Miscellaneous, Grill Element And Heater |
|
- | |||||
| NI | 8206185 | Miscellaneous, Wire, Ground |
|
- |
