01 - Control Board Parts
02 - Door Parts

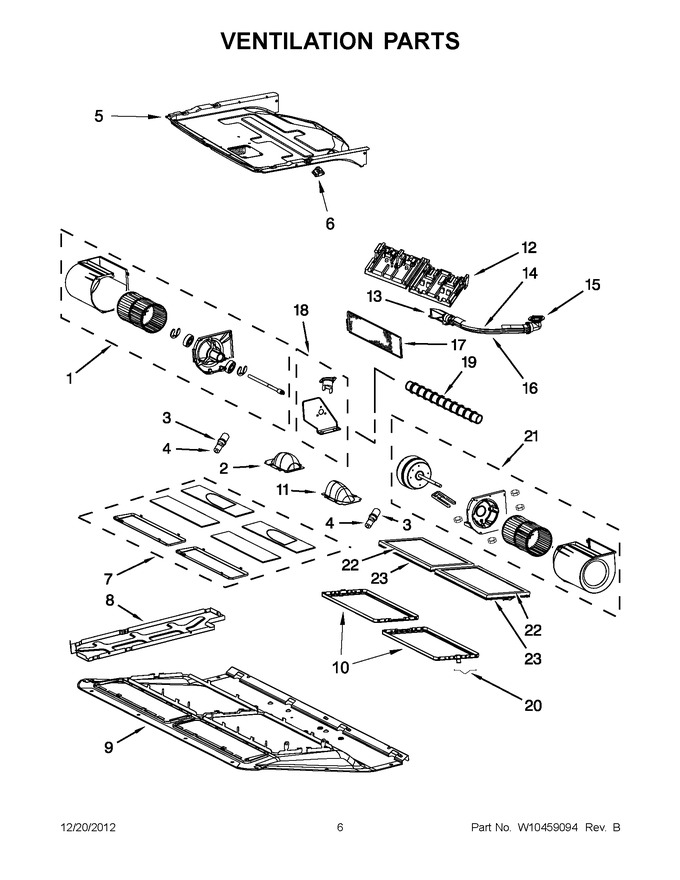

03 - Ventilation Parts
04 - Interior & Airflow Parts
05 - Rack And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8206092 | Housing, Blower Left Side |
|
$ 35.57 | |||||
| 2 | W10143957 | Reflector, Lamp (left) |
|
$ 8.82 | |||||
| 3 | 8204670 | Lamp, Halogen |
|
Immediately | $ 25.94 | ||||
| 4 | W10143958 | Socket, Lamp |
|
$ 6.47 | |||||
| 5 | W10143951 | Air Guide, Center Hood |
|
$ 49.60 | |||||
| 6 | W10110862 | Mounting, Nut |
|
- | |||||
| 7 | W10113788 | Frame, Glass (left Side) |
|
$ 10.32 | |||||
| 7 | W10113789 | Frame, Glass (right Side) |
|
$ 10.43 | |||||
| 8 | 8206097 | Plate, Separator |
|
- | |||||
| 9 | W10222517 | Plate, Bottom |
|
$ 80.23 | |||||
| 10 | W10113792 | Frame, Filters |
|
$ 21.87 | |||||
| 11 | W10143960 | Reflector, Lamp (right) |
|
$ 37.54 | |||||
| 12 | W10253653 | Cover, Turntable Motor |
|
- | |||||
| 13 | W10244735 | Diffuser |
|
$ 26.84 | |||||
| 14 | 8206105 | Cover, Duct |
|
- | |||||
| 15 | 8206106 | Connector, Duct |
|
- | |||||
| 16 | 8206107 | Holder, Duct |
|
- | |||||
| 17 | 8206498 | Shield |
|
$ 8.36 | |||||
| 18 | 8206212 | Support & Base Thermostat Assembly |
|
$ 36.48 | |||||
| 19 | 8206263 | Connector Shaft |
|
$ 58.24 | |||||
| 20 | 8206499 | Spring, Filter Frame |
|
$ 7.19 | |||||
| 21 | 8206112 | Housing, Blower Right Side |
|
$ 275.82 | |||||
| 22 | W10120840A | Filter, Charcoal (Replaces: W10120840) |
|
Immediately | $ 22.25 | ||||
| 23 | W10120839A | Filter, Grease (Replaces: W10120839) |
|
Immediately | $ 23.57 |
