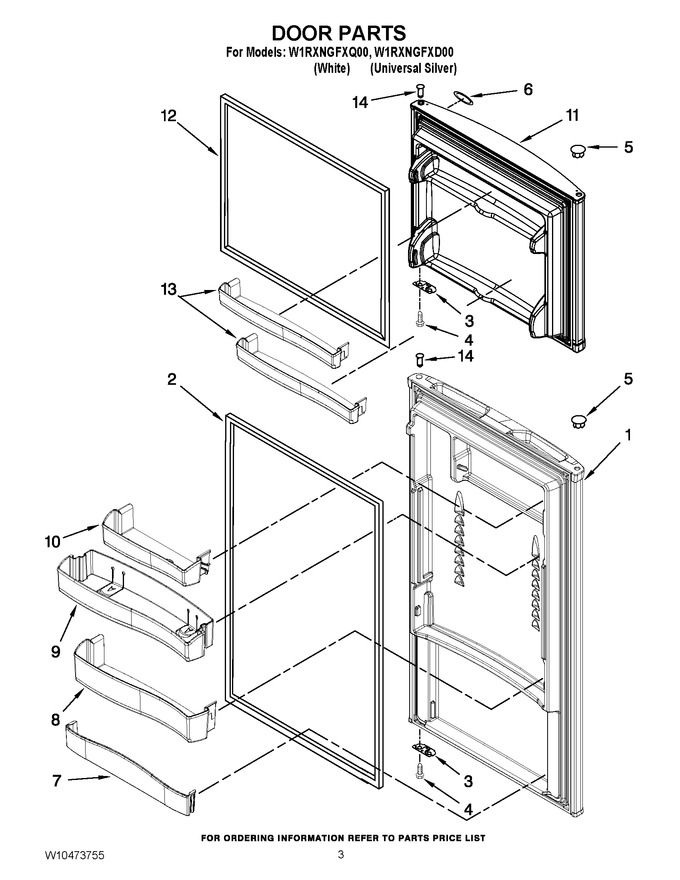

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10196147		Refrigerator Door (includes Items 3, 4, 5, 14 & Molded Handle) (universal Silver)		Appelez-nous	-
1	2264416W		Refrigerator Door (includes Items 3, 4, 5, 14 & Molded Handle) (white)		Appelez-nous	-
2	W11177739		Gasket, Door (rc)   (Replaces: W10190028)		Appelez-nous	-
3	2211124		Bracket, Door Stop		Appelez-nous	-
4	WP488921		Screw 8-15 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
5	2211250D		Hole Plug (universal Silver)		Appelez-nous	-
5	2211250W		Hole Plug (white)		Appelez-nous	-
6	WP2213265		Nameplate   (Replaces: 2262180)			Immediately	$ 79.87
7	2252638		Trim, Door Shelf (bottom)		Appelez-nous	-
8	WPW10304911		Trim, Door Shelf (middle)   (Replaces: W10304911)				$ 93.21
8	W10172992		Trim, Door Shelf (middle) (universal Silver)		Appelez-nous	-
8	2256906		Trim, Door Shelf (middle) (white)		Appelez-nous	-
9	W10172994		Bin, Adjustable (universal Silver)		Appelez-nous	-
9	2325251		Bin, Adjustable (white)		Appelez-nous	-
10	2256826		Trim, Door Shelf (top) (white)		Appelez-nous	-
10	W10172993		Trim, Door Shelf (top) (universal Silver)		Appelez-nous	-
11	W10325285		Freezer Door (includes Items 3, 4, 5, 14 & Molded Handle) (white)		Appelez-nous	-
11	W10315429		Freezer Door (includes Items 3, 4, 5, 14 & Molded Handle) (universal Silver)		Appelez-nous	-
12	W10190030		Gasket, Door (fc)				$ 121.04
13	W10172990		Trim, Door Shelf (freezer) (universal Silver)				$ 21.84
13	2256898		Trim, Door Shelf (freezer) (white)		Appelez-nous	-
14	2210973		Thimble		Appelez-nous	-
