01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:

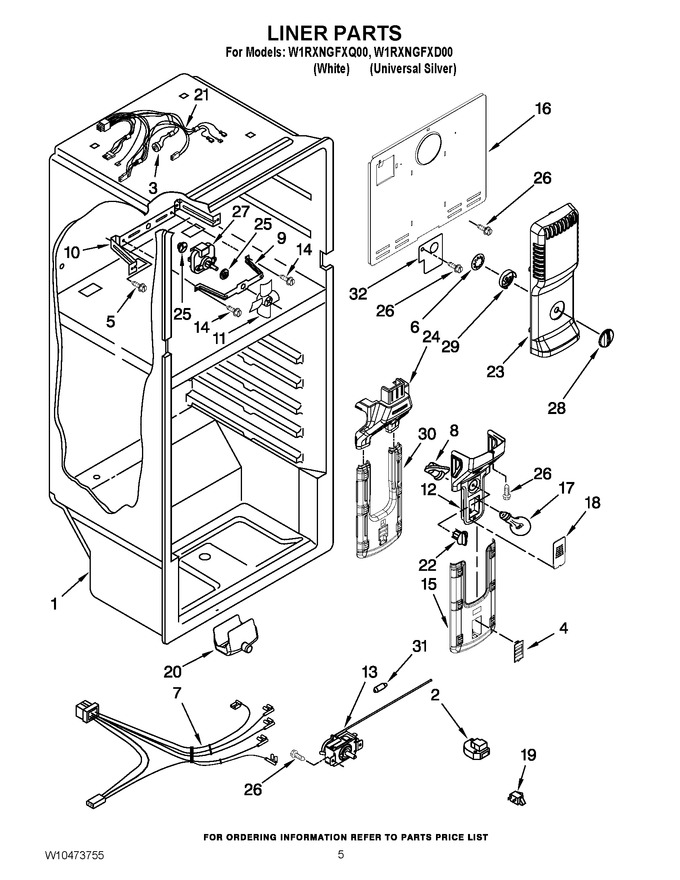

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | W10822278 | Defrost Timer (Replaces: 2188372) |
|
Immediately | $ 31.00 | ||||
| 3 | WPW10225581 | Defrost, Bi-metal (Replaces: 2266067) |
|
Immediately | $ 45.69 | ||||
| 4 | W10172911 | Cover, Filter |
|
- | |||||
| 5 | WP489442 | Screw 8-18 X .600 (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 6 | 2211239 | Push Nut, Damper |
|
- | |||||
| 7 | W10231877 | Wire Assembly, Control Box |
|
- | |||||
| 8 | W10545295 | Socket, Light (Replaces: 2263413) |
|
- | |||||
| 9 | WPW10180172 | Fan Support Bracket (Replaces: W10180172) |
|
$ 36.24 | |||||
| 10 | 2197405 | Fan Mounting Bracket |
|
$ 30.23 | |||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | W10315411 | Control Box |
|
- | |||||
| 13 | W10191321 | Thermostat (includes Item 31) |
|
- | |||||
| 14 | WP489399 | Screw 8-32 X .312 (Replaces: 489399) |
|
$ 6.26 | |||||
| 15 | W10191309 | Cover, Air Diffuser Extension |
|
- | |||||
| 16 | W10312232 | Cover, Evaporator |
|
- | |||||
| 17 | W10194651 | Light Bulb |
|
- | |||||
| 18 | W10134373 | Cover, Light |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | 2211236 | Drain Cup |
|
$ 49.12 | |||||
| 21 | W10313100 | Wiring, Freezer (includes Item 3) |
|
- | |||||
| 22 | 2211234 | Knob, Thermostat |
|
$ 25.03 | |||||
| 23 | W10194618 | Air Tower |
|
- | |||||
| 24 | W10191323 | Air Diffuser Assy |
|
- | |||||
| 25 | WP2264462 | Grommet, Motor (Replaces: 2264462) |
|
Immediately | $ 39.57 | ||||
| 26 | WP489478 | Screw 48-18 X 1/2 (Replaces: 489478) |
|
$ 6.98 | |||||
| 27 | WPW10188389 | Motor, Evap Fan (Replaces: W10188389) |
|
Immediately | $ 69.15 | ||||
| 28 | 2211237 | Knob, Freezer Control |
|
$ 77.26 | |||||
| 29 | 2211238 | Damper, Freezer Control |
|
- | |||||
| 30 | W10134372 | Body, Air Diffuser Extension |
|
- | |||||
| 31 | 2200831 | Weight, Thermal |
|
- | |||||
| 32 | WP2217784 | Cover, Hole (Replaces: 2217784) |
|
$ 40.47 |
