01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:

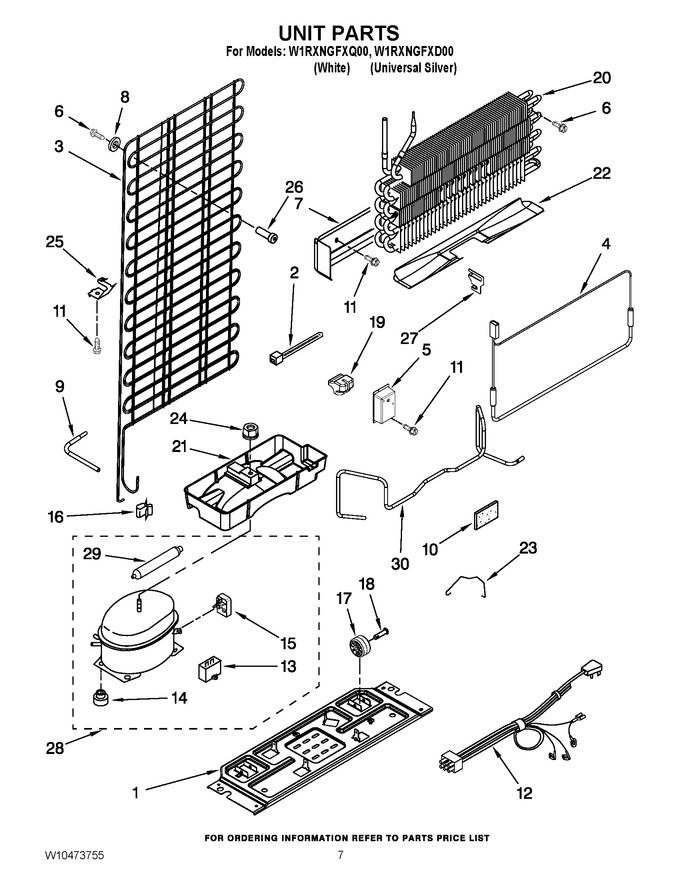

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2211011 | Support Plate, Compressor (Replaces: W10222447) |
|
- | |||||
| 2 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.11 | |||||
| 3 | W10219451 | Condenser |
|
$ 298.78 | |||||
| 4 | WP2210895 | Heater, Defrost (Replaces: 2210895) |
|
$ 140.47 | |||||
| 5 | 2219292 | Cover |
|
- | |||||
| 6 | 8533892 | Screw 8-18 X 3.00 |
|
- | |||||
| 7 | 2210879 | Heat Shield |
|
- | |||||
| 8 | 8526417 | Washer (Replaces: VS611) |
|
$ 12.55 | |||||
| 9 | 2219285 | Tube, Process |
|
- | |||||
| 10 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 11 | WP489442 | Screw 8-18 X .600 (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 12 | W10313098 | Wire Assy, Unit |
|
- | |||||
| 13 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 14 | WP2163786 | Grommet (Replaces: 2222084) |
|
$ 7.16 | |||||
| 15 | W10330833 | Start Device Combination Relay & Overload |
|
- | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 6.47 | |||||
| 19 | 2210813 | Wedge, Evaporator |
|
- | |||||
| 20 | 2211094 | Evaporator Assy. |
|
$ 200.46 | |||||
| 21 | 2217957 | Evaporator Tray |
|
- | |||||
| 22 | 2265095 | Drain Pan |
|
- | |||||
| 23 | 2263622 | Retainer |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 11.02 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 26 | 2258451 | Spacer |
|
- | |||||
| 27 | 2211075 | Bracket |
|
- | |||||
| 28 | W10823815 | Compressor (includes Items 13, 14, 15 & 29) (Replaces: 2256541) |
|
$ 606.74 | |||||
| 29 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 47.31 | ||||
| 30 | 2262248 | Tube, Discharge |
|
- | |||||
| NI | N/P | Refrigerant Charge (3.00 Ozs. (r134a)) |
|
- | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 82.22 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 |
