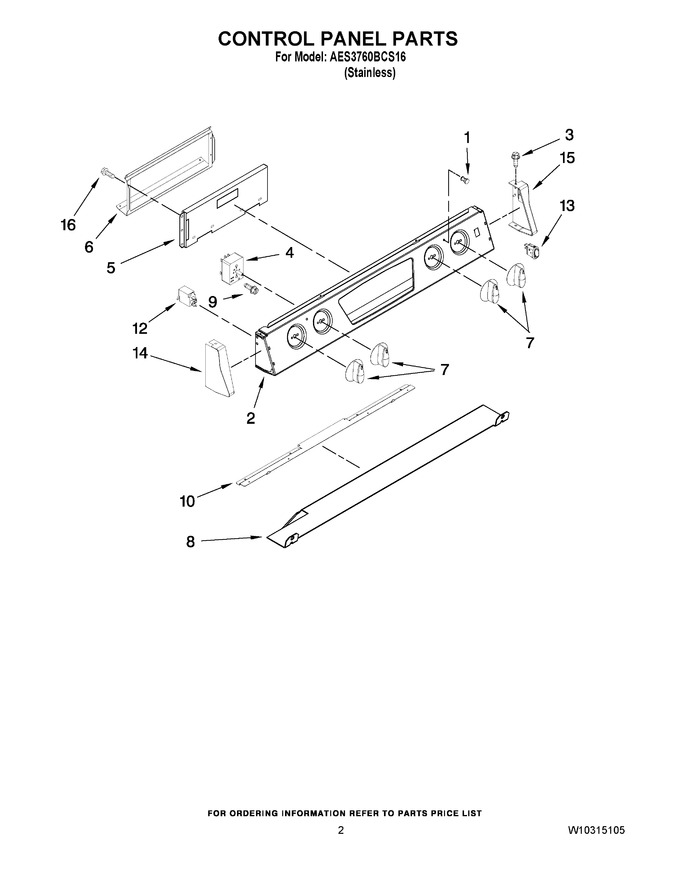

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7730P011-60 | Lens (Replaces: 7730P011-60) |
|
$ 5.16 | |||||
| 2 | 2614N145-50 | Panel, Control (stainless) |
|
$ 218.34 | |||||
| 3 | WP59002061 | Screw (Replaces: 7101P077-60) |
|
$ 6.98 | |||||
| 4 | WP7403P238-60 | Switch, Infinte (6`` (lf,rr)) (Replaces: 7403P373-60) |
|
Immediately | $ 57.78 | ||||
| 4 | WP7403P239-60 | Switch, Infinte (8`` (rf,lr)) (Replaces: 7403P372-60) |
|
Immediately | $ 35.10 | ||||
| 5 | 5701M897-60 | Control W/overlay (black) |
|
$ 387.45 | |||||
| 6 | 3801F895-51 | Bracket, Control |
|
- | |||||
| 7 | 74008731 | Knob, Control (black) (Replaces: 7737P239-60) |
|
$ 67.30 | |||||
| 8 | 3604F421-51 | Shield, Control |
|
$ 32.71 | |||||
| 9 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 10 | 3807F601-51 | Support,control Panel |
|
- | |||||
| 12 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 13 | 7403P798-60 | Switch, Rocker (black) |
|
- | |||||
| 14 | 7726P401-60 | Cap, End (left) (black) |
|
$ 23.44 | |||||
| 15 | 7726P400-60 | Cap, End (right) (black) |
|
$ 32.99 | |||||
| 16 | W11206744 | Screw (Replaces: 7101P394-60) |
|
$ 12.20 |
