Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10282492 Rack, Oven (2)   (Replaces: 7801P054-60) In-Stock Immediately $ 65.15

2 WP3405F037-80 Drawer, Storage   (Replaces: 3405F033-80) Special Order $ 304.98

3 WP7101P072-60 Screw, Panel   (Replaces: 7101P072-60) Special Order $ 6.77

4 3801F887-51 Bracket, Drawer Special Order $ 8.32

5 W10253205 Panel, Drawer (stainless) Special Order $ 103.90

6 W10180296 Handle, Drawer Special Order $ 99.76

7 WPW10131078 Nut, Lock   (Replaces: 7103P139-60) Special Order $ 4.00

8 2404F030-51 Lining, Drawer Appelez-nous -
9 WP74005546 Spacer, Rubber   (Replaces: 8010P130-60) Special Order $ 9.48

10 WP74004078 Roller Drawer (2)   (Replaces: 8014P022-60) In-Stock Immediately $ 10.70

11 7118P032-60 Shaft, Roller (2) Appelez-nous -
12 WP488130 Nut   (Replaces: 7103P082-60) Special Order $ 6.27


    View Diagram in Separate Window     Print Icon   Print Part List

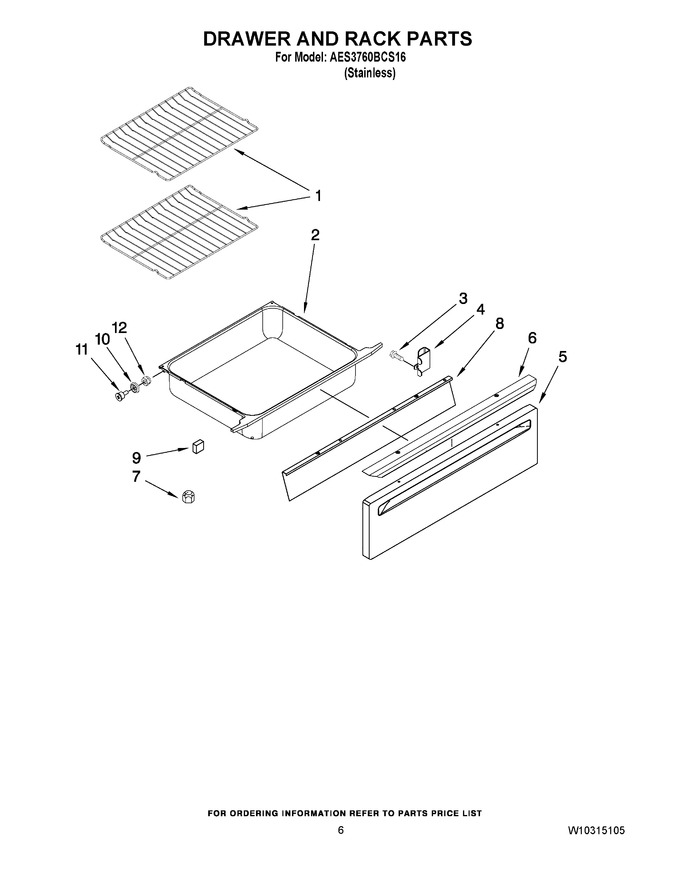

Diagram for AES3760BCS16
