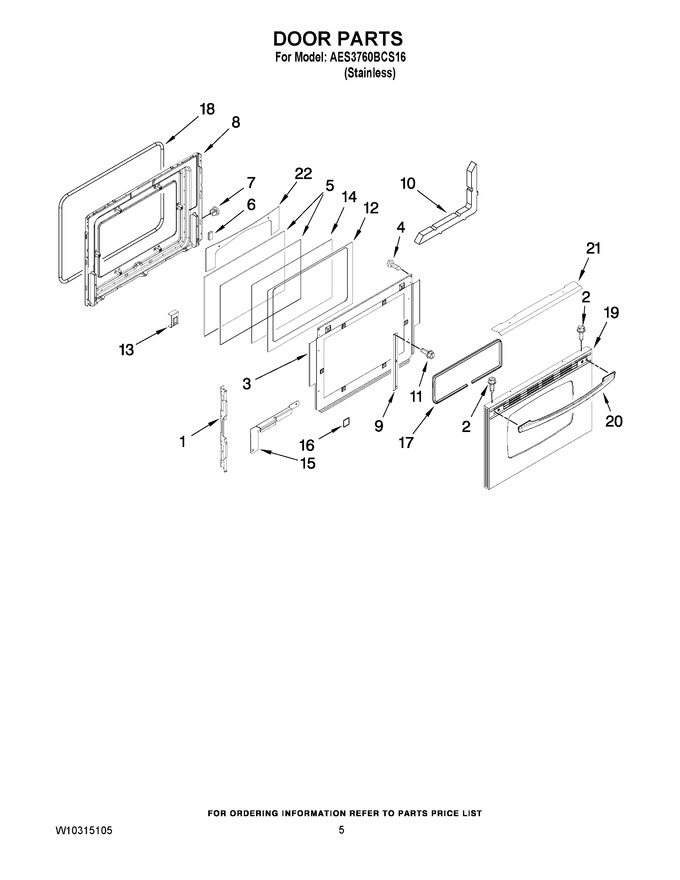

04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3804F293-45		Support, Glass Retainer				$ 16.56
2	WP74006515		Screw, Handle (2)   (Replaces: 7101P544-60)				$ 7.29
3	3601F373-51		Baffle, Retainer				$ 244.22
4	WP90767		Screw 8ab 1/2   (Replaces: 7101P426-60)			Immediately	$ 7.04
5	74003645		Glass, Inner (2)   (Replaces: 7902P436-60)			Immediately	$ 162.53
6	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 9.48
7	WP74001574		Nut, Snap (4)   (Replaces: 7103P141-60)			Immediately	$ 9.91
8	2402W312-19		Lining, Door				$ 144.50
9	3801F886-51		Bracket, Glass (2)				$ 38.25
10	7002P246-60		Insulation, Door				$ 58.49
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
12	7902P752-60		Glass, Outer		Appelez-nous	-
13	7112P034-60		Clip, Door Glass		Appelez-nous	-
14	7902P768-60		Glass, Inner Coated		Appelez-nous	-
15	3804F317-80		Retainer, Glass (lower)				$ 65.61
15	3804F308-51		Retainer, Glass (left)		Appelez-nous	-
15	3804F307-51		Retainer, Glass (right)				$ 109.75
16	8010P152-60		Spacer, Rubber		Appelez-nous	-
17	WP74009029		Gasket, Door   (Replaces: 7201P141-60)			Immediately	$ 145.22
18	WPW10162384		Seal, Door   (Replaces: W10162384)			Immediately	$ 77.61
19	7760P200-60		Panel, Outer Door (stainless)		Appelez-nous	-
20	7701P499-60		Handle, Door				$ 113.03
21	3604F418-51		Shield, Door				$ 77.46
22	74011048		Insulation, Foil   (Replaces: 7002P463-60)				$ 71.73
