SELECT A DIAGRAM

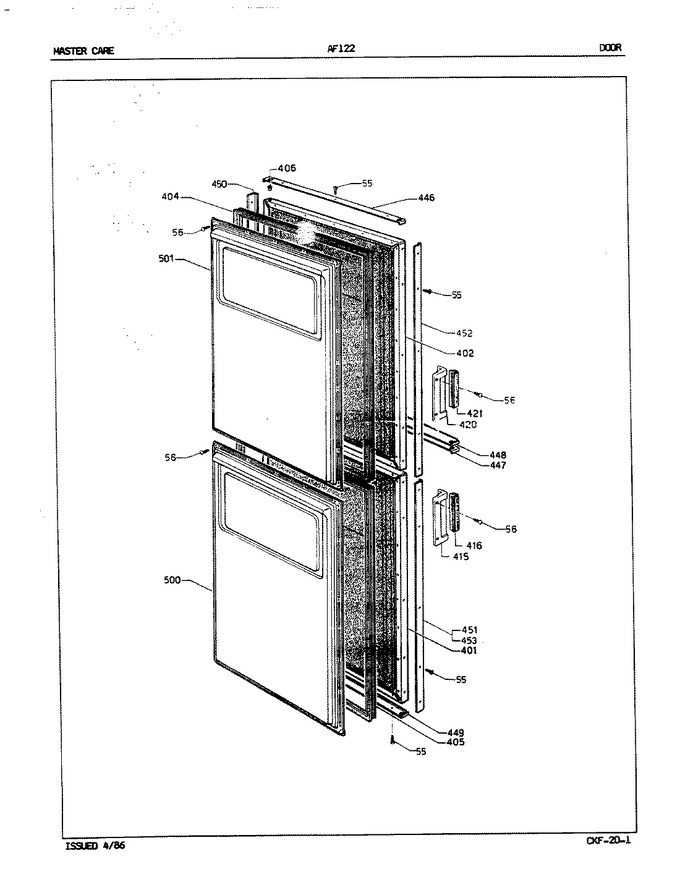

01 - Door


02 - Interior/exterior


03 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
53	043745		Screw		Appelez-nous	-
56	WP59002061		Screw   (Replaces: Y043695)				$ 6.98
401	059608		Outer Panel		Appelez-nous	-
402	6021-001207		Outer Panel   (Replaces: 111767)				$ 32.60
404	059584		Door Gasket		Appelez-nous	-
405	059584		Door Gasket		Appelez-nous	-
406	083110		Hinge Bushing		Appelez-nous	-
415	DG94-01939A		Door Handle   (Replaces: 111968)				$ 1,366.85
416	116244		Handle Insert		Appelez-nous	-
420	DG94-01939A		Door Handle   (Replaces: 111968)				$ 1,366.85
421	116244		Handle Insert		Appelez-nous	-
446	117173		Trim		Appelez-nous	-
448	117173		Trim		Appelez-nous	-
449	117173		Trim		Appelez-nous	-
450	117172		Trim		Appelez-nous	-
451	117172		Trim		Appelez-nous	-
452	117172		Trim		Appelez-nous	-
453	117172		Trim		Appelez-nous	-
477	117173		Trim		Appelez-nous	-
500	059756		Inner Panel		Appelez-nous	-
501	DG96-00511A		Inner Panel   (Replaces: 111987)				$ 107.80

    View Diagram in Separate Window       Print Part List
