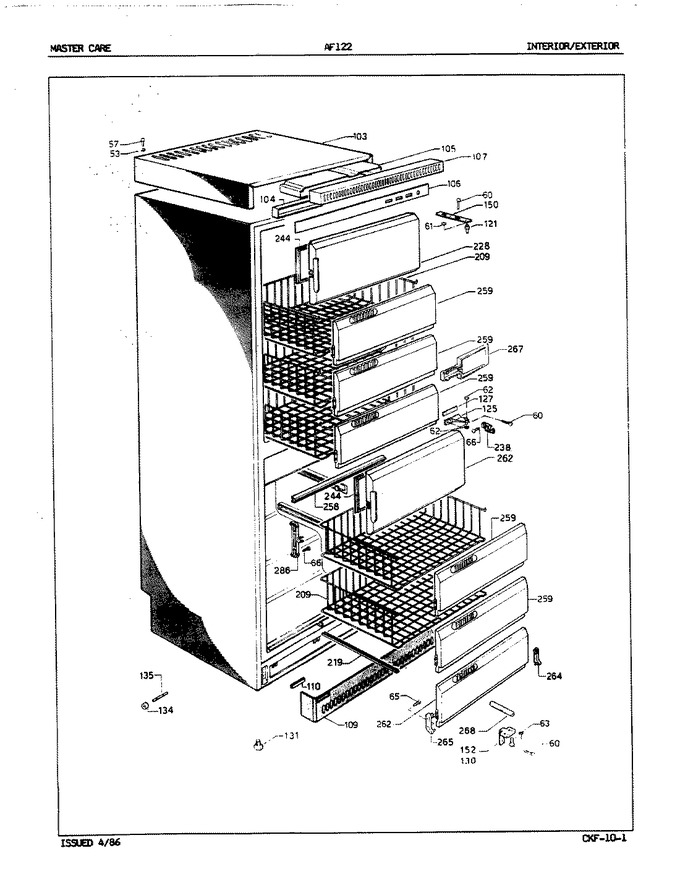

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door
02 - Interior/exterior
03 - Unit Compartment & System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 53 | 042712 | Lockwasher |
|
- | |||||
| 57 | 042241 | Screw |
|
- | |||||
| 60 | 116979 | Screw |
|
- | |||||
| 61 | 042713 | Washer |
|
- | |||||
| 62 | 086454 | Washer |
|
- | |||||
| 63 | 042393 | Washer |
|
- | |||||
| 65 | 043689 | Screw |
|
- | |||||
| 66 | 043691 | Screw |
|
- | |||||
| 103 | 059599 | Cabinet Top |
|
- | |||||
| 104 | 116336-00 | Cntrl Mtg Panel (Replaces: 116336) |
|
- | |||||
| 105 | DE94-03981A | Control Shield (Replaces: 114302) |
|
$ 346.28 | |||||
| 106 | 116283 | Control Panel |
|
- | |||||
| 107 | 116296 | Grille |
|
- | |||||
| 109 | 059776 | Kickplate |
|
- | |||||
| 110 | 059554 | Base Cap |
|
- | |||||
| 121 | 114277 | Hinge Pin |
|
- | |||||
| 125 | DE94-04140A | Hinge (Replaces: 112273) |
|
$ 750.76 | |||||
| 127 | 112710 | Hinge Gasket |
|
- | |||||
| 130 | 058304 | Hinge Pin |
|
- | |||||
| 131 | 067370 | Leveler |
|
- | |||||
| 134 | 059558 | Cabinet Wheel |
|
- | |||||
| 135 | 059542 | Wheel Pin |
|
- | |||||
| 150 | 4163607 | Rh Top Hinge (Replaces: 116100) |
|
$ 52.02 | |||||
| 152 | 059536 | Hinge |
|
- | |||||
| 209 | 113791 | Removabl Basket |
|
- | |||||
| 219 | 085712 | Basket Trim |
|
- | |||||
| 228 | 116247 | Evap Door |
|
- | |||||
| 238 | 115104 | Evap Door Hinge |
|
- | |||||
| 244 | 115019 | Evap Door Liner |
|
- | |||||
| 258 | 4709-002503 | Frzr Comp Trim (Replaces: 111762) |
|
$ 125.65 | |||||
| 259 | 114642 | Drawer Panel |
|
- | |||||
| 262 | 116311 | Bottom Door |
|
- | |||||
| 264 | 115858 | Rh Door Hinge |
|
- | |||||
| 265 | 115856 | Lh Door Hinge |
|
- | |||||
| 267 | 112178 | Scraper |
|
- | |||||
| 268 | 086644 | Drain Hose |
|
- | |||||
| 286 | 115009 | Door Catch |
|
- |
