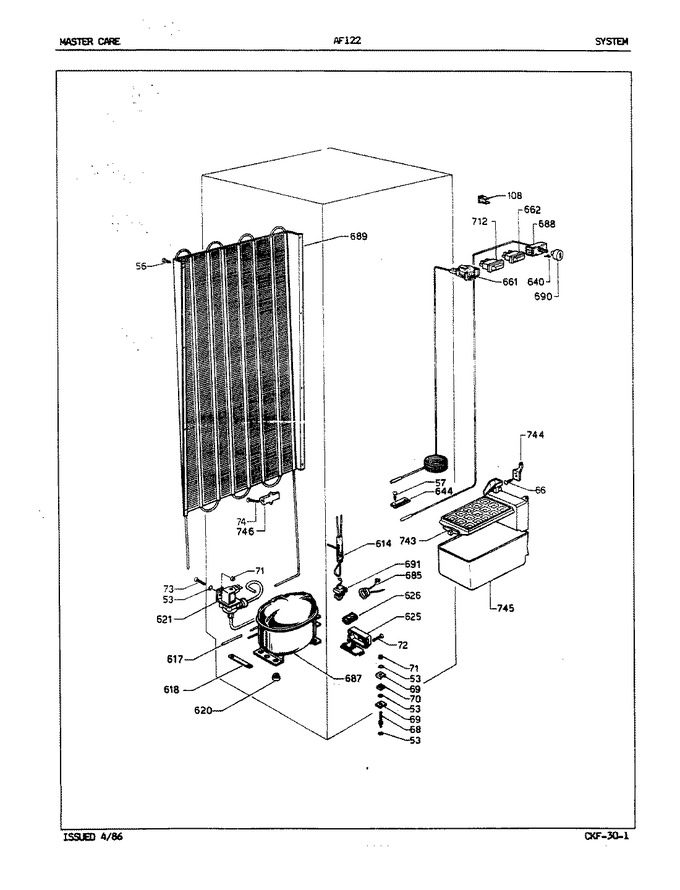

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
53	042712		Lockwasher		Appelez-nous	-
56	WP59002061		Screw   (Replaces: Y043695)				$ 6.98
57	042241		Screw		Appelez-nous	-
66	043691		Screw		Appelez-nous	-
68	042048		Screw		Appelez-nous	-
69	044199		Nut		Appelez-nous	-
70	042235		Nut		Appelez-nous	-
71	044020		Nut		Appelez-nous	-
72	042241		Screw		Appelez-nous	-
73	042402		Screw		Appelez-nous	-
74	043652		Screw		Appelez-nous	-
108	DA97-17704A		Grille Catch   (Replaces: 111522)				$ 197.71
614	Y083356		Drier		Appelez-nous	-
617	082124		Fill Pipe		Appelez-nous	-
618	083854		Compr Mtg Plate		Appelez-nous	-
620	083543		Comp Mtg Grommt		Appelez-nous	-
621	4318047		Valve, Water   (Replaces: 60184-1)			Immediately	$ 66.68
625	087636		Cover & Base		Appelez-nous	-
626	084445		Junction Box		Appelez-nous	-
640	082792		Knob Spring		Appelez-nous	-
644	DA61-06013B		Bulb Clamp   (Replaces: 110818)				$ 9.82
661	116505		Thermometer		Appelez-nous	-
662	116306		Switch		Appelez-nous	-
685	059462		Protector		Appelez-nous	-
687	059632		Compressor		Appelez-nous	-
688	059587		Temp Control		Appelez-nous	-
689	6001-000623		Condenser   (Replaces: 111763)				$ 0.85
690	114404		Temp Control Knob				$ 535.64
691	059463		Relay		Appelez-nous	-
712	116304		Pilot Lamp Asm		Appelez-nous	-
712	RA43714-9		Icemaker Mech		Appelez-nous	-
743	52307-1		Sensor Arm		Appelez-nous	-
743	023320		Z Tube,icemaker		Appelez-nous	-
743	53748-1		Spout, Fill		Appelez-nous	-
743	58706-1		Ring, Retainer		Appelez-nous	-
743	WP59688-1A		Tray, Ice   (Replaces: 59688-1)				$ 18.71
743	65317-1		Spacer		Appelez-nous	-
743	65318-1		Clip, Drive Shaft				$ 23.83
743	65319-1		Shaft, Drive		Appelez-nous	-
744	116288		Spacer		Appelez-nous	-
745	116293		Icemaker Bin		Appelez-nous	-
746	116303		Im Socket		Appelez-nous	-
