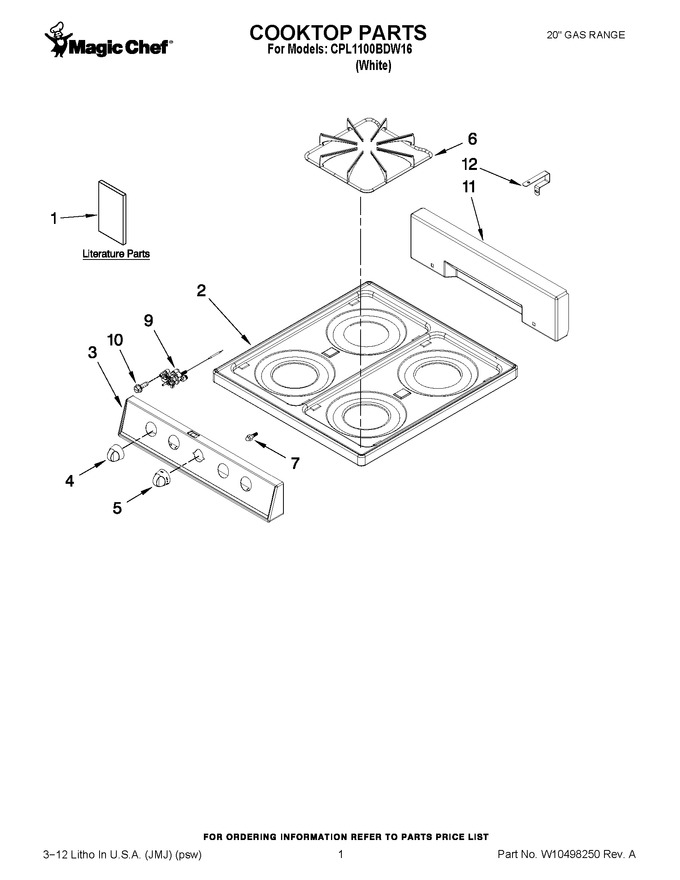

01 - Cooktop Parts
02 - Door Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P634-60 | Instructions Installation (english) |
|
- | |||||
| 1 | 8101P381-60 | Instructions Installation (french) |
|
- | |||||
| 1 | 8113P705-60 | Use & Care Guide (english) |
|
- | |||||
| 1 | 8113P706-60 | Use & Care Guide (french) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | 2001F050-81 | Cooktop (white) |
|
- | |||||
| 3 | 2616F396-71 | Panel, Manifold |
|
- | |||||
| 4 | 74010588 | Knob, Burner (Replaces: 7733P445-60) |
|
$ 19.76 | |||||
| 5 | 7731P212-60 | Knob, Oven |
|
- | |||||
| 6 | WP2003X030-00 | Grate, Burner (Replaces: 7518P463-60) |
|
$ 157.41 | |||||
| 7 | 8002P022-60 | Catch, Top |
|
- | |||||
| 9 | WP74009917 | Thermostat (Replaces: 7515P047-60) |
|
$ 269.81 | |||||
| 10 | WP74009857 | Screw (Replaces: 7101P651-60) |
|
$ 4.95 | |||||
| 11 | 2602F365-71 | Panel, Backguard |
|
- | |||||
| 12 | 3801F937-51 | Brkt, Backguard |
|
- |
